Product Main Technical Parameters

1.The use of hydraulic selection of transmission mechanism, can save the auxiliary time.

2. Spindle positive, parking (brake), transmission, free action, controlled by a handle, convenient operation.

3. The spindle box, rocker arm, internal and external column using the hydraulic driven diamond block clamping mechanism, clamping reliable.

4. The rocker rail, cylindrical surface, spindle, spindle sleeve and internal and external cylindrical rotary roller,

and other places were carried out quenching treatment, can be long-term stability of machine tool accuracy, extended service life.

5. Has the perfect safety protection device and the external column protection.

6. In the structural design and manufacturing process, also adopted a series of effective measures, so that the accuracy of machine tools and the life of the whole machine are extended.

**Application : **

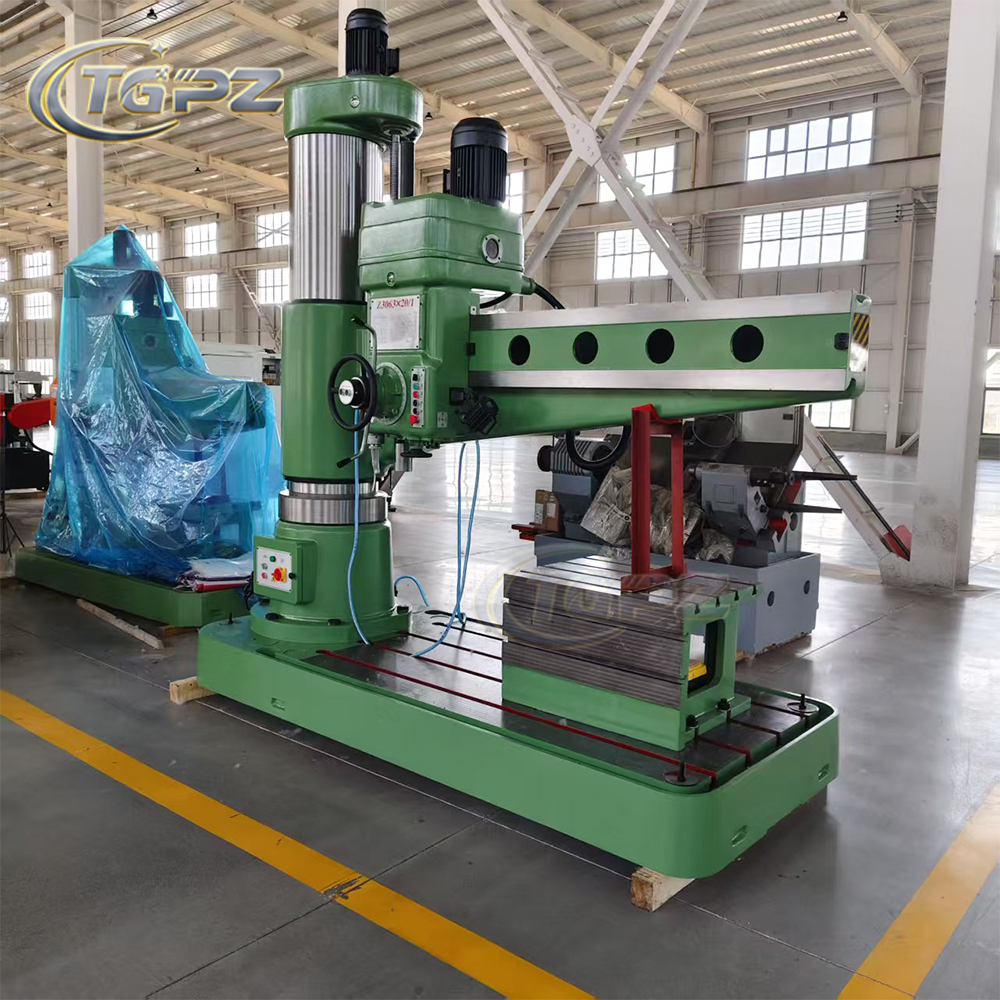

Radial drilling machine is mainly composed of base, inner column, outer column, rocker arm, spindle box and worktable. The inner column is fixed at one end of the base, and the outer column is sheathed outside,

and the outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve, which is set to move up and down the outer column. Because the screw and the outer pillar are

connected together, and the lifting nut is fixed on the rocker arm, the rocker arm cannot rotate around the outer column, and can only be rotated with the outer column. The spindle box is a compound part, which

is composed of main drive motor, spindle and spindle transmission mechanism, feed and speed changing mechanism, and operation mechanism of machine tool. The spindle box is mounted on the horizontal guide rail

of the rocker arm and can be operated by the Handwheel to move along the rocker arm in the horizontal guide rail.

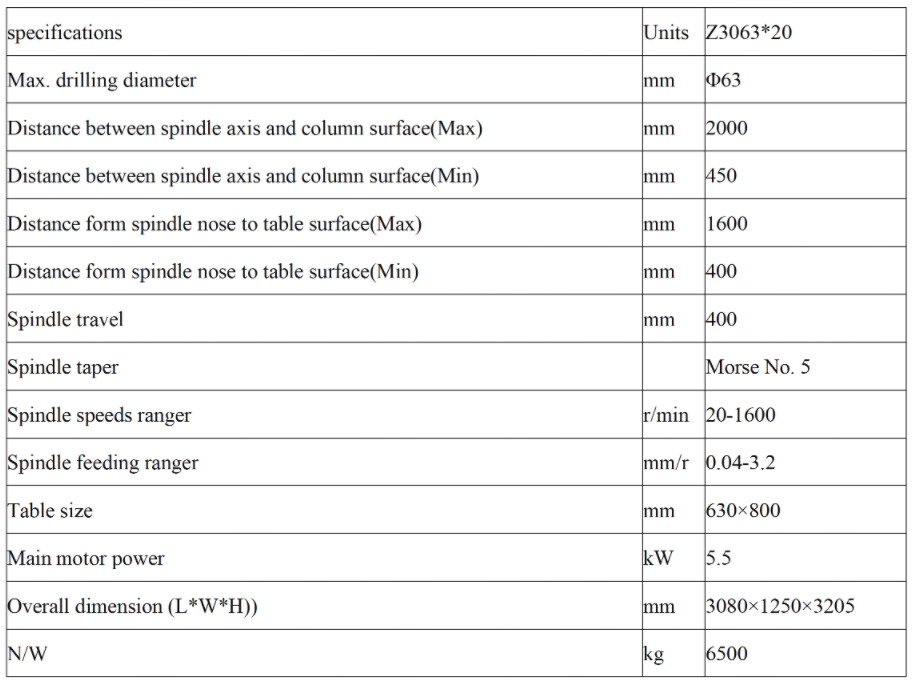

Product Parameters
