Drilling Machine

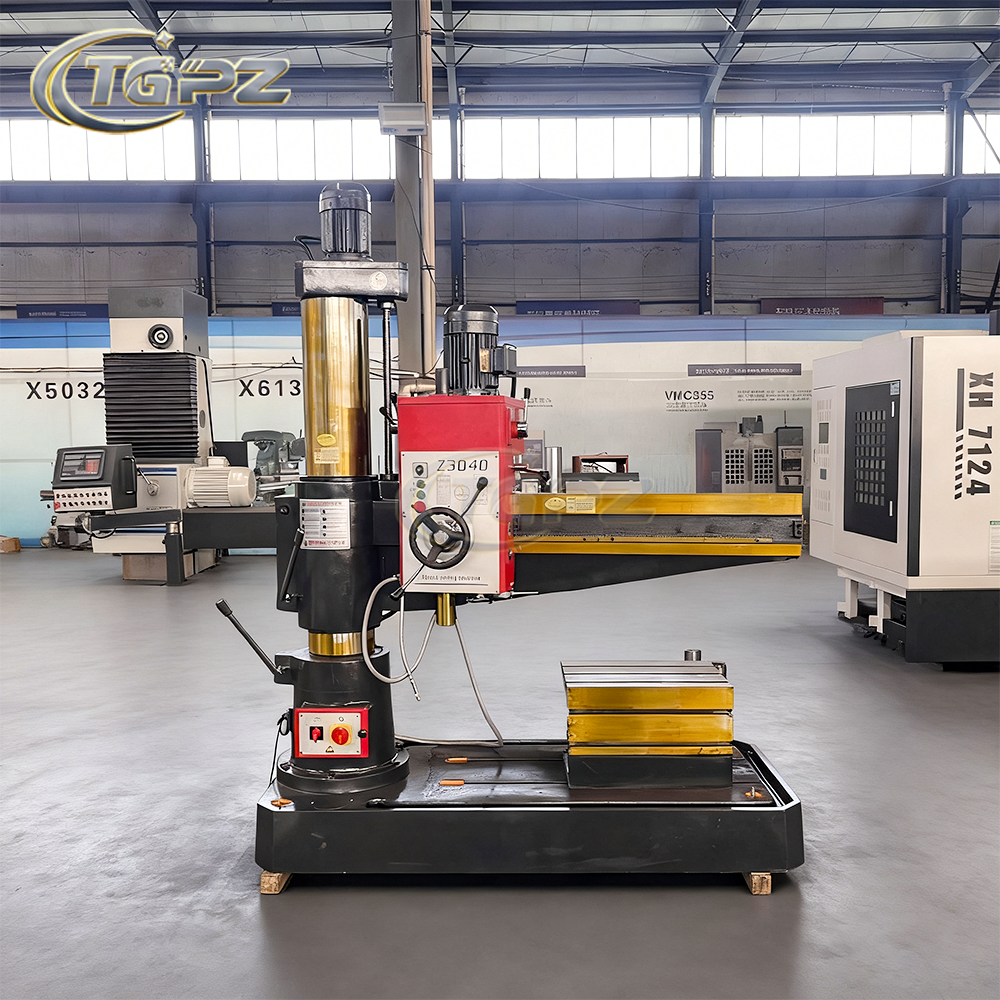

Z3040X14 Radial Drilling Machine
A radial drilling machine is a general-purpose machine tool with a rotating, vertically adjustable arm and a movable spindle head, mainly used for drilling, reaming, and tapping holes in various directions on large and heavy workpieces.
Get QuoteProduct Description
Product Main Technical Parameters
Radial Drilling Machine Main Performance Characteristics：
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Integrated with mechanical, electrical, and hydraulic systems, powerful and versatile.
The machine tool adopts mechanical preselection speed change; the spindle box, rocker arm, and column are hydraulically clamped.
Castings use the best batching process and casting equipment to ensure high-quality basic parts of the machine tool.
Spindle components are made of special high-quality steel to ensure high strength and wear resistance.
The rocker arm guide rail is quenched to maintain the stability of the machine tool's precision for a long time and extend its service life.
Hydraulic clamping, mechanical speed change.

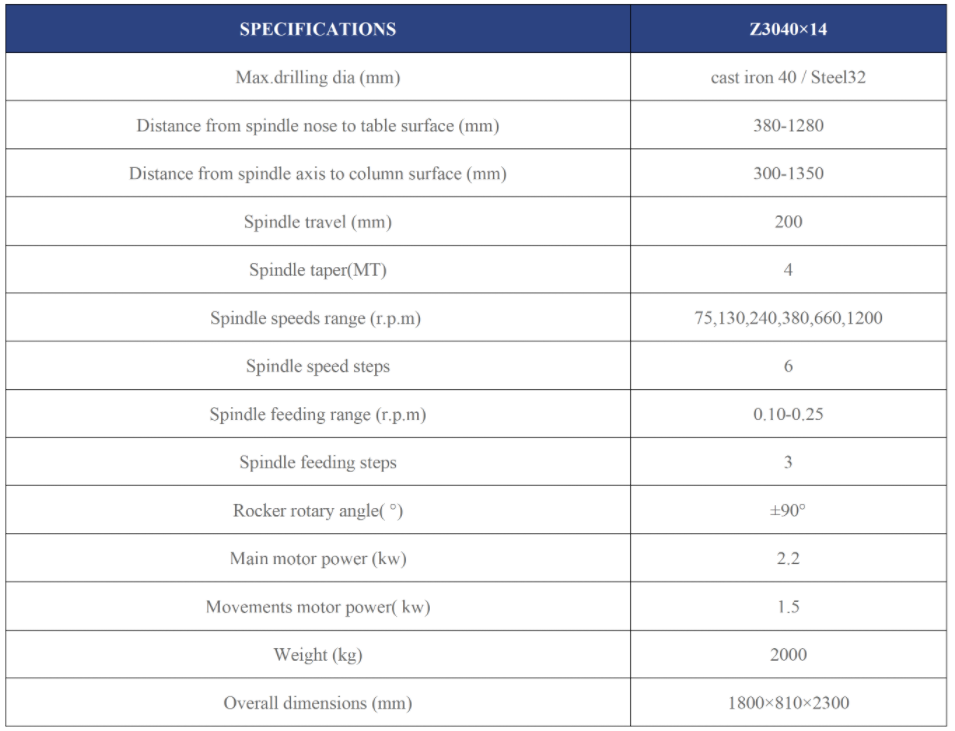

Radial Drilling Machine Main Technical Parameters:
