Vertical Machining Center

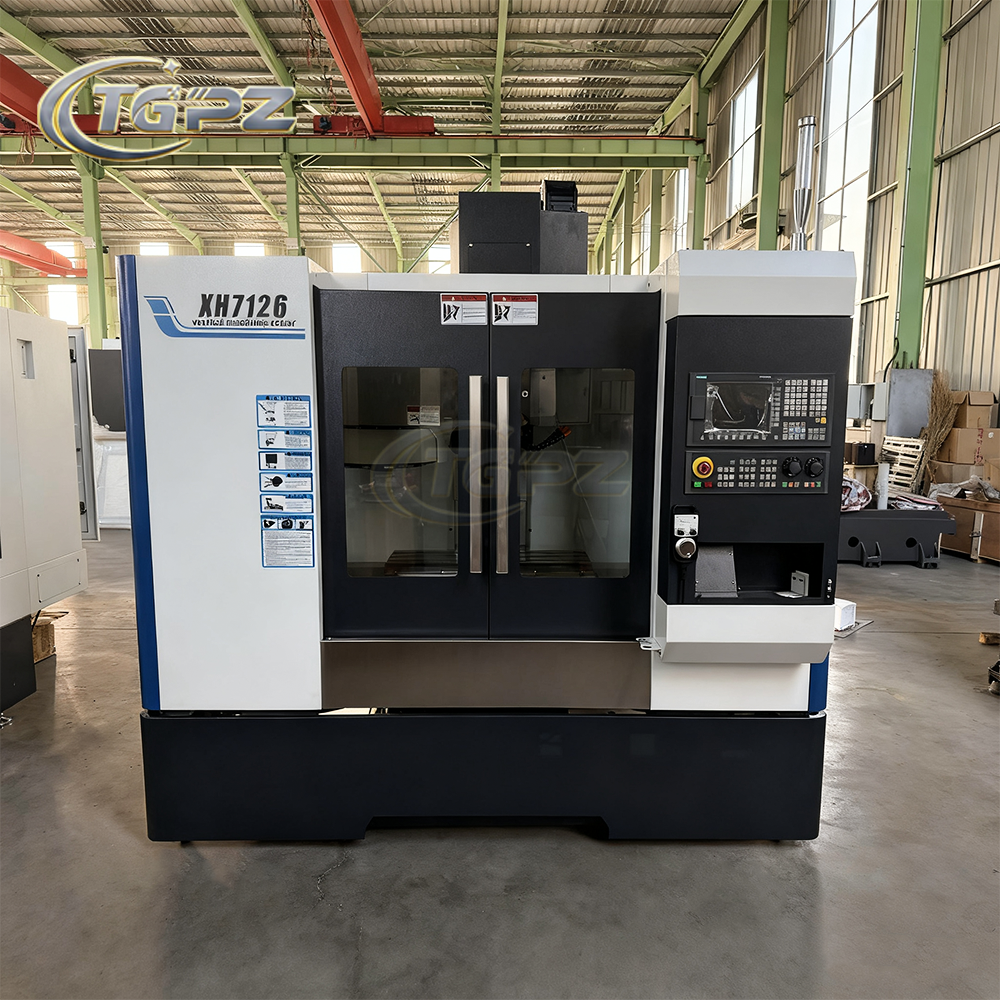

XH7126 CNC Vertical Machining Center metal processing
The XH7126 vertical machining center is a three-axis CNC milling machine designed for high-precision, low-volume, and complex part machining. It provides efficient, high-precision milling and is suitable for producing a wide range of metal materials and challenging workpieces. The XH7126 is widely used in a variety of fields, including machining, mold manufacturing, and aerospace.
Get QuoteProduct Description
Features
This VMC is suitable for mechanical processing and mold making .
And it can asapt to the processing requirement from rough machining to finish machining .
It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.

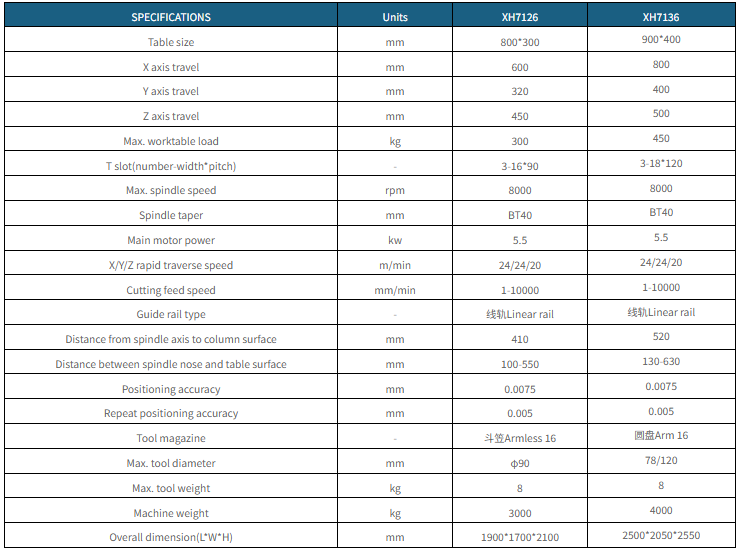

Product Main Technical Parameters
Vertical Machining Center Features:
High quality resin sand
Taiwan spindle
Automatic lubrication system
Chip conveyor at optional
