Features

This VMC is suitable for mechanical processing and mold making .

And it can asapt to the processing requirement from rough machining to finish machining .

It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting

3.The pre tension precision ball screw drive

4.The high speed, high precision, high rigidity spindle unit

5.The design of oil-water separation

6.The intermittent automatic lubrication

7.Automatic scraping knife system

Application

The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high

precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other

industries.

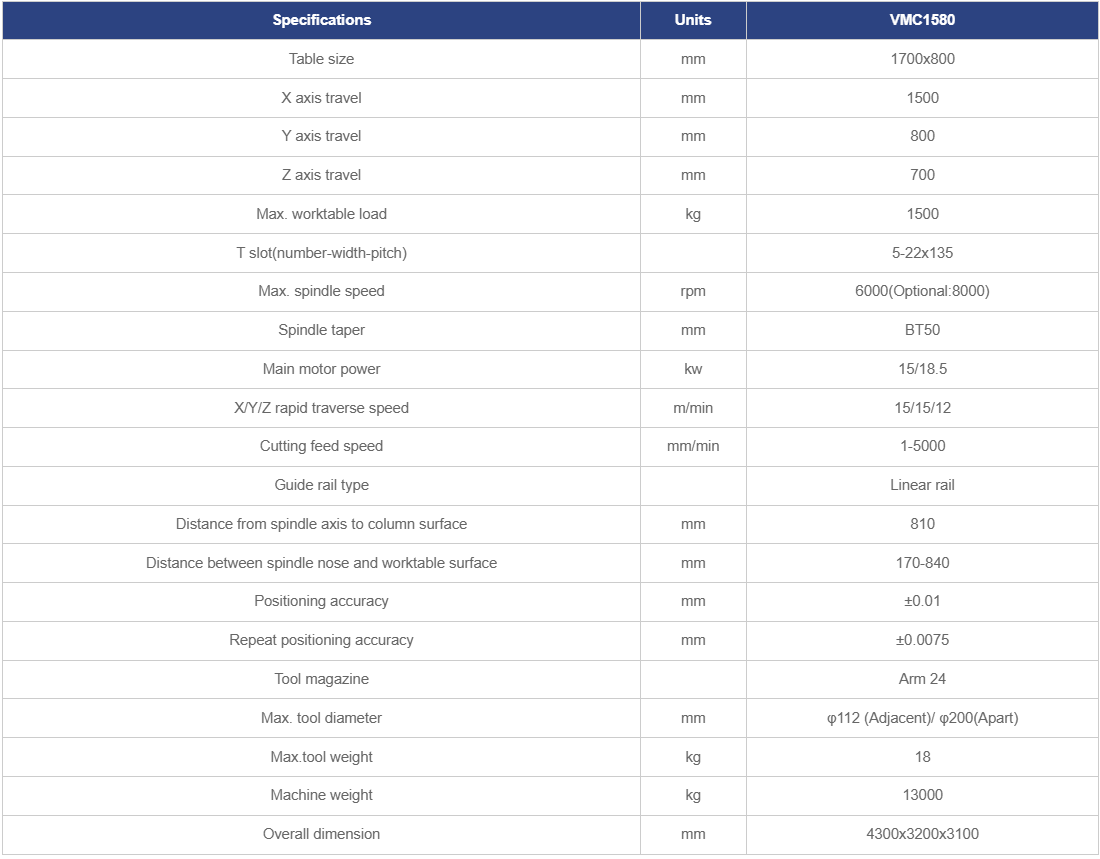

Product Main Technical Parameters

Vertical Machining Center Features:

High quality resin sand

Taiwan spindle

Taiwan ball screw and locking nut

Taiwan pressure cylinder

Arm type-24 Tool Changers

Automatic lubrication system

Chip conveyor at optional

Vertical Machining Center Application:

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling

,drilling ,tapping ,boring ,etc.
