Feature

1、Novel structure, wide versatility, high precision, easy to operate.

2、The use of a variety of accessories, can expand the scope of use, improve the utilization rate.

3、X8126: equipped with programmable digital display system, wide grid ruler resolution is 0.01mm.

Matters Needing Attention：

1、Loading and unloading parts, must remove the tool, cutting head, hand must not be close to the milling surface.

2、When using the milling machine to the knife, it must be slow or hand into, no fast forward, no stopping when walking the knife.

3、Fast advance and retreat knife pay attention to whether the milling machine handle will hit people.

4、Feed not too fast, no sudden change, milling machine limit block should be adjusted.

5、Up and down and measuring the workpiece, adjusting the tool, fastening the speed, must stop the milling machine.

6、Disassemble the end mill, the working table should be covered with wood, disassemble the milling cutter nut, the force should not be too strong.

7、Do not touch or use cotton yarn to wipe the rotating parts and tools, do not use the hand to support the cutter.

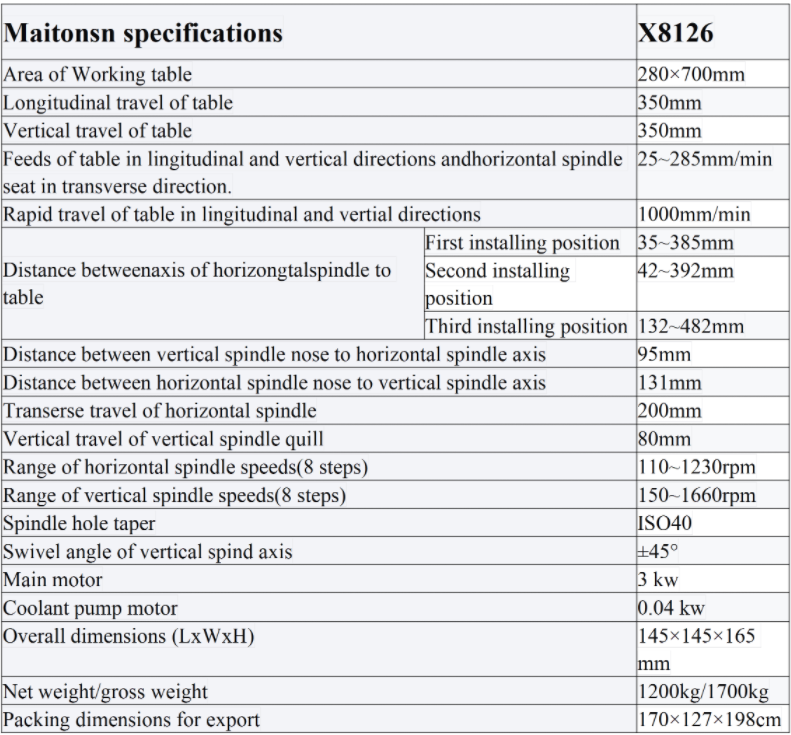

Product Paramenters
