Product Description
Product Main Technical Parameters

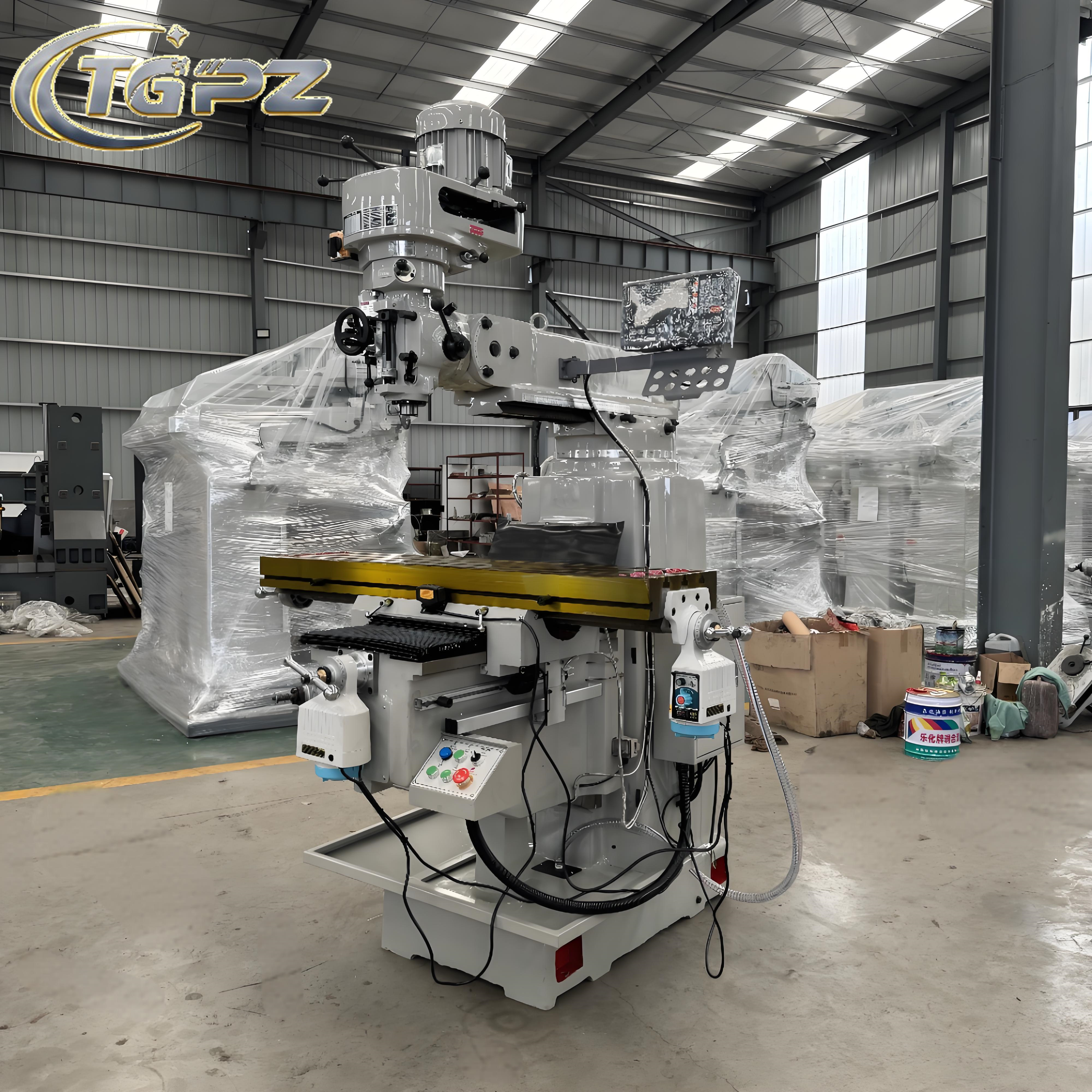

1.The 4H vertical turret milling machine is a type of milling machine where the worktable moves the workpiece and the high-speed spindle rotates the cutting tool for cutting. The turret milling machine has a compact structure, small volume, and high flexibility. The milling head can rotate 90 degrees left and right and 45 degrees front and back. The rocker arm can not only extend and retract front and back but also rotate 360 degrees in the horizontal plane, increasing the effective working range of
The machine tool has high rigidity and good processing accuracy and is suitable for processing various parts with flat surfaces, holes, or complex flat shapes. After a single clamping, it can continuously complete multiple processing procedures such as milling, drilling, boring, reaming,reaming, and tapping of the parts.
This machine tool has an advanced and reasonable structure, is easy and flexible to operate, and is convenient for maintenance.Various CNC systems can be configured according to user requirements.
**Turret Milling Machine Main Performance Characteristics： **
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Turret Milling Machine Application：
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

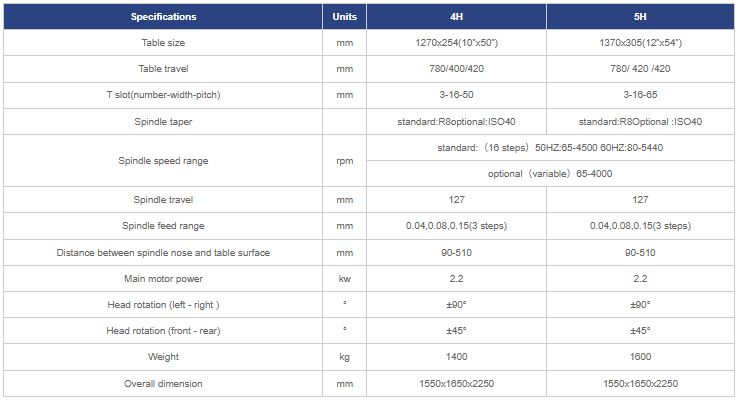

Turret Milling Machine Main Technical Parameters:
