Milling Machine

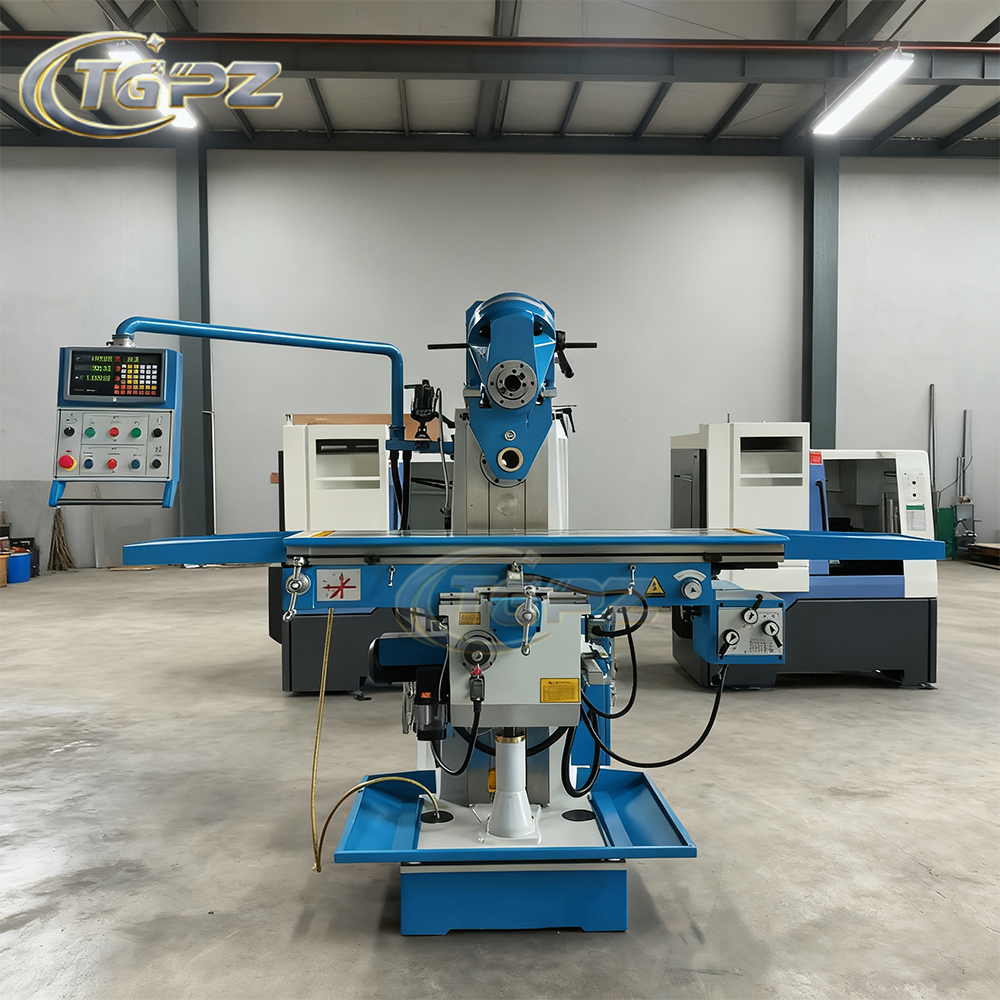

X6436 Universal Swivel Head Milling Machine
Vertical and horizontal universal swivel head milling machine, equipped with high-strength cast iron body, vertical milling head rotatable 360°, worktable optionally rotatable ±45°, dual vertical and horizontal spindles, compatible with various cutters, capable of efficiently machining flat surfaces, inclined surfaces, grooves, helical grooves, gears, cams and complex curved surfaces.
Get QuoteProduct Description
Product description
1.The machine is with universal milling head,it can swivel 360 degrees.
2.The table can swivel left and right side 45 degrees.
3.The machine can automatic feed on three axes controlled through one gear box.
4.The ram is movable forward and backward.
5.The machine is equipped with operation panel which is convenient for the operator.
The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.Spindle taper hole of the machine can be directly or
through the attachment installed all cylindrical milling cutter, disc cutter,molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,holes,
and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

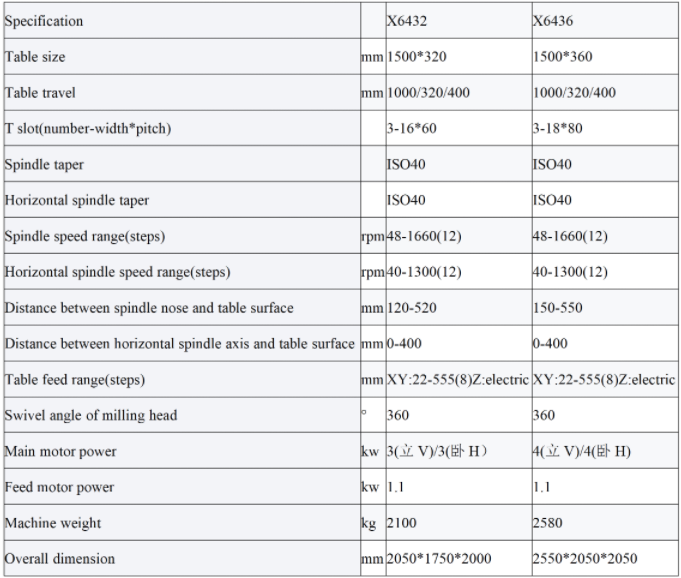

Product main technical parameters:
