Product Main Technical Parameters

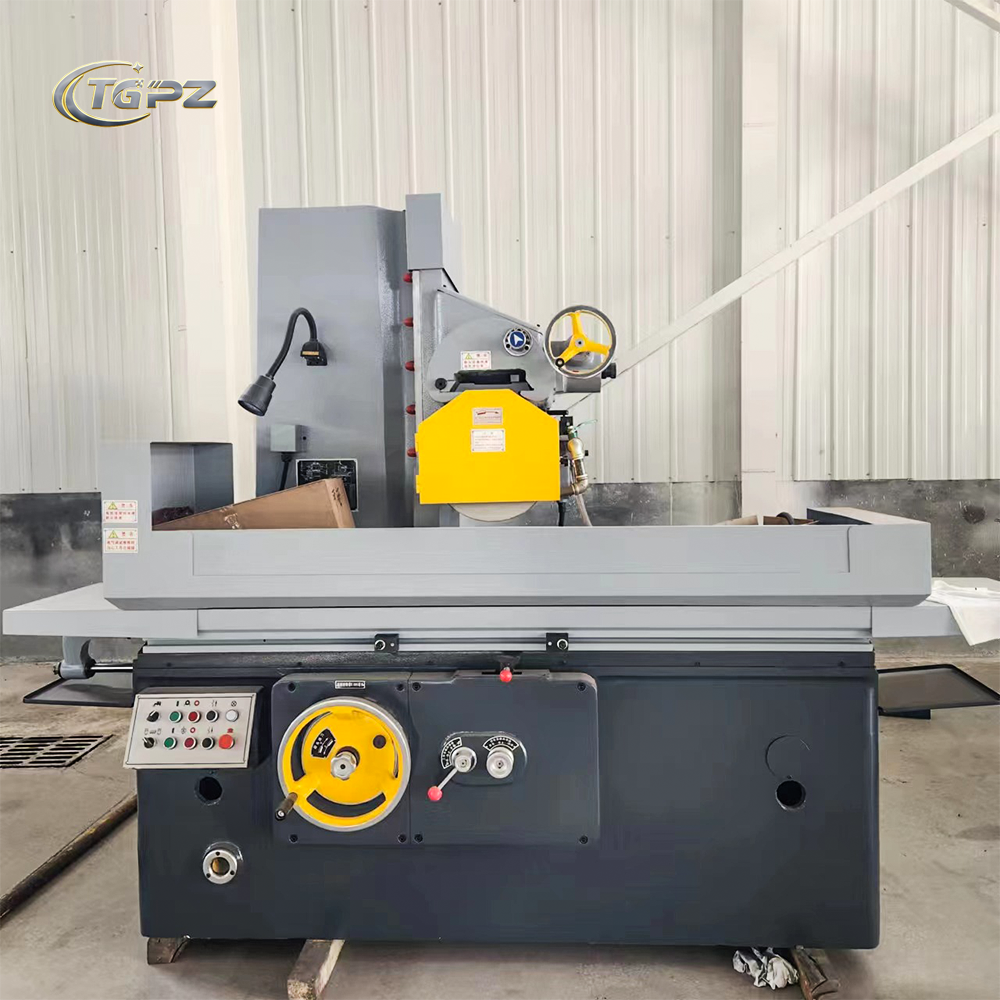

Hydraulic Surface Grinder Machine Main Performance Characteristics：

The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.

Grinding head vertical rapid lifting, improve production efficiency.

The grinding head lateral movement driven by hydraulic motor, which can also be manually.

The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.

Hydraulic Surface Grinder Machine Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

1.The lengthways moving of the working table and the transverse moving of the grind head are hydraulic transmission, and the velocity modulation is step less.

2.The machine tool bed adopts the head symmetry design, and the heat-distortion is little. It use the oil returning to heat the bed slide way.

The grinder head perpendicular feed is manual, and has the quick elevating mechanism. It can lighten labor intensity and raise work efficiency.

3.The electrical equipment carries out the new national standard, and increases the electrical equipment interlock safety device.

It is very convenient to operate.

4.The machine tool motion is smooth and steady, the function is reliable, the noise is low and the precision is stable.

It is convenient for user to operate.

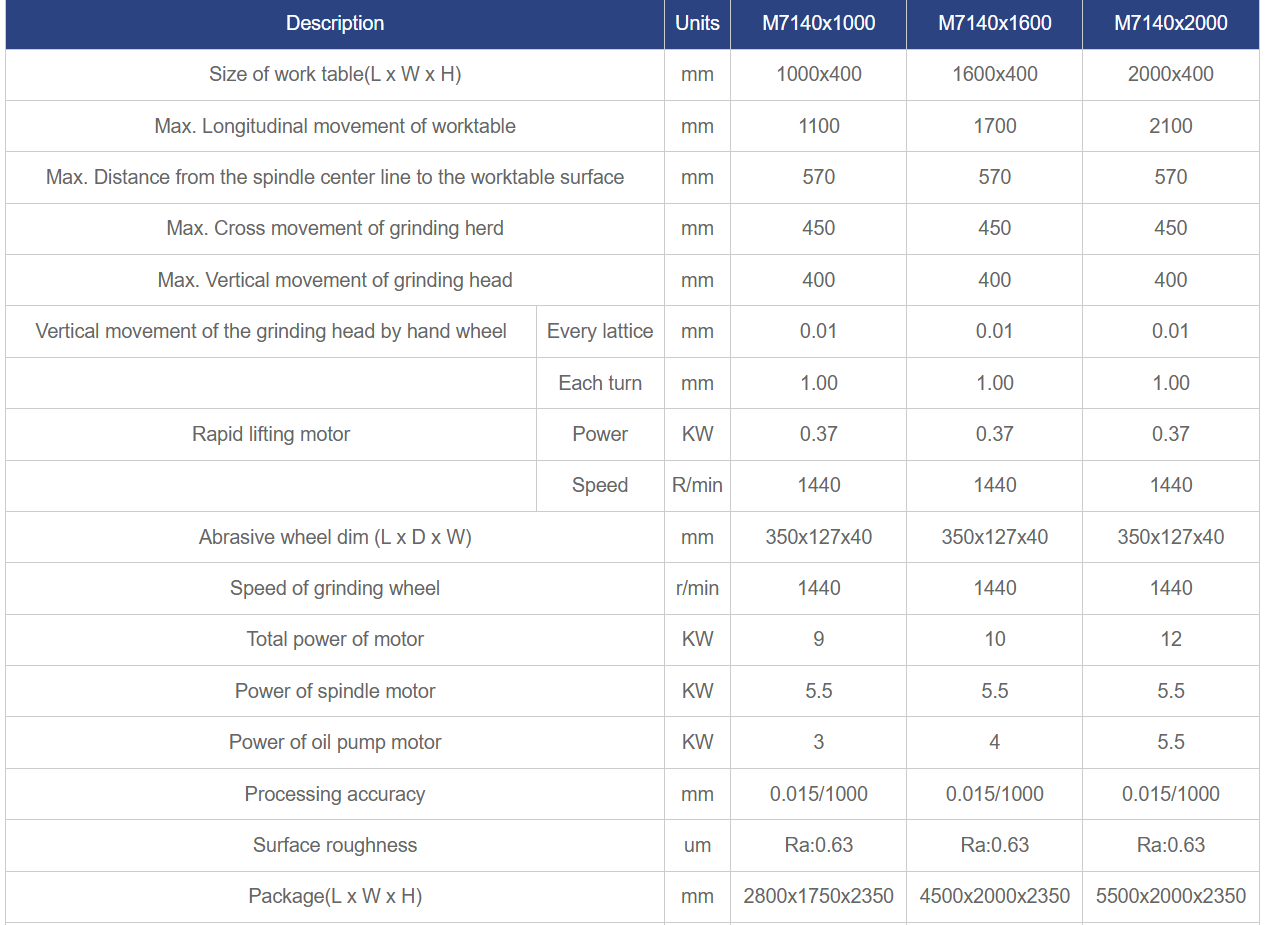

Hydraulic Surface Grinder Machine Main Technical Parameters:
