Grinder Machine

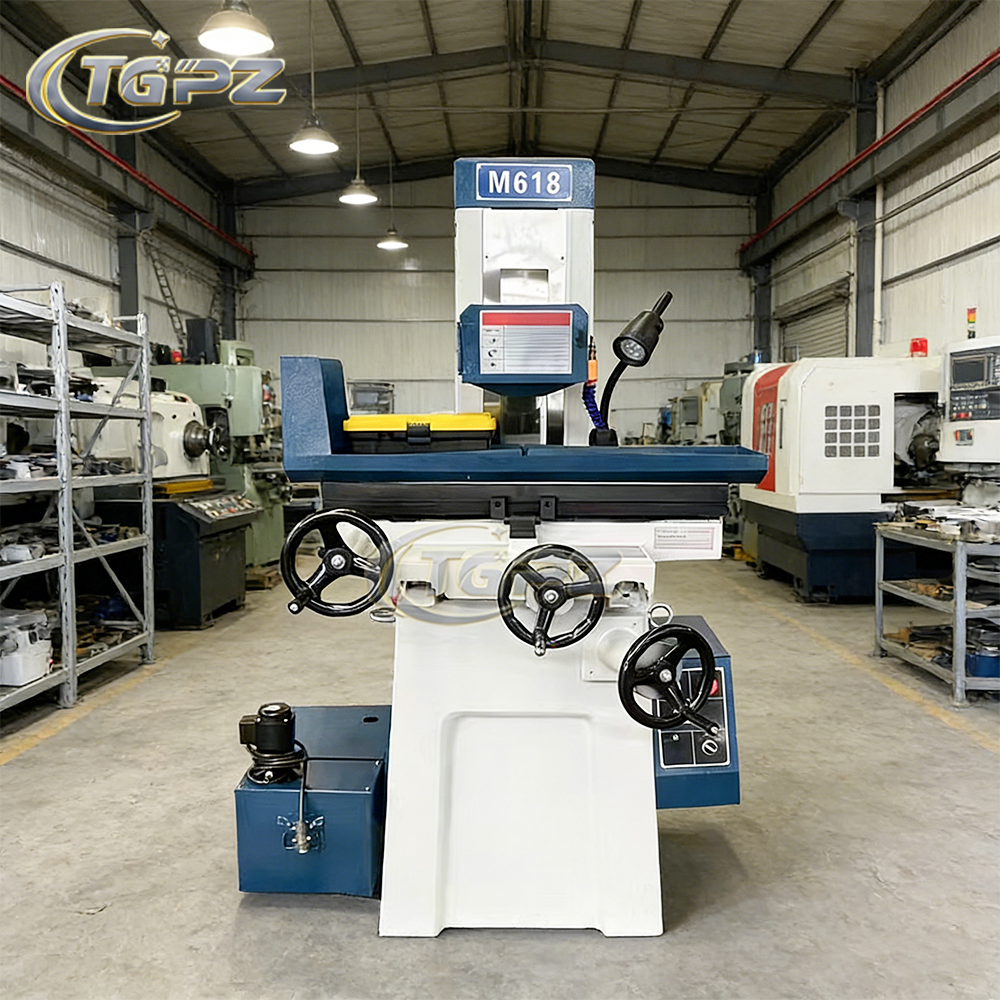

M618 Manual Surface Grinder Machine
This grinding machine mainly uses the grinding wheel to grind various materials such as steel, cast iron and non-ferrous metals. According to the material and shape of the workpiece, different clamping and positioning methods can be used. For general planes, electromagnetic chucks can be used or directly fastened to the worktable for grinding; planes, right angled surfaces, arbitrary angles, cylindrical end faces and other special shapes can be ground on fixtures or multi functional powerful electromagnetic chucks .
Get QuoteProduct Description

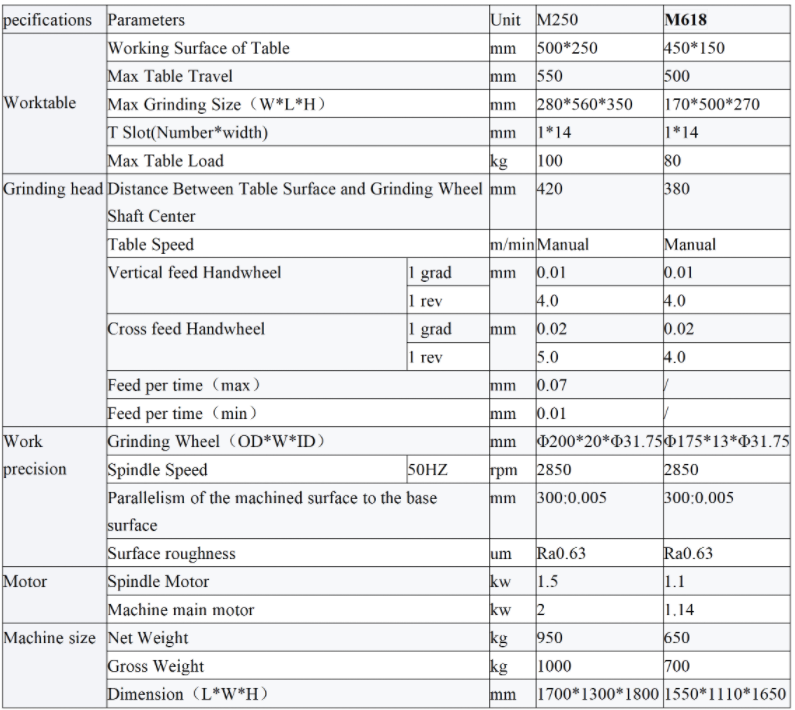

Product Main Technical Parameters
Manual Surface Grinder Machine Main Performance Characteristics：
The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
No vibration, low noise motor spindle.
According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Manual Surface Grinder Machine Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
