Feature

The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cuttingq machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77

series machines:

1. Standard maximumcutting taper:±6°/80mm;(±15°,±30°,±45° are optional)

2. Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guideequipped, the precision can reach 0.01mm)

3. Best surface roughness ≤ Ra2.5μm(single-cut),Ra0.8μm(multi-cut);

4. Molybdenum wirediameter:0.1-0.2mm;

5.Max. cutting speed≤130mm2/min

6. Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can becustomized),Power:1.5KW;

7. Working fluid:Water-based emulsion.

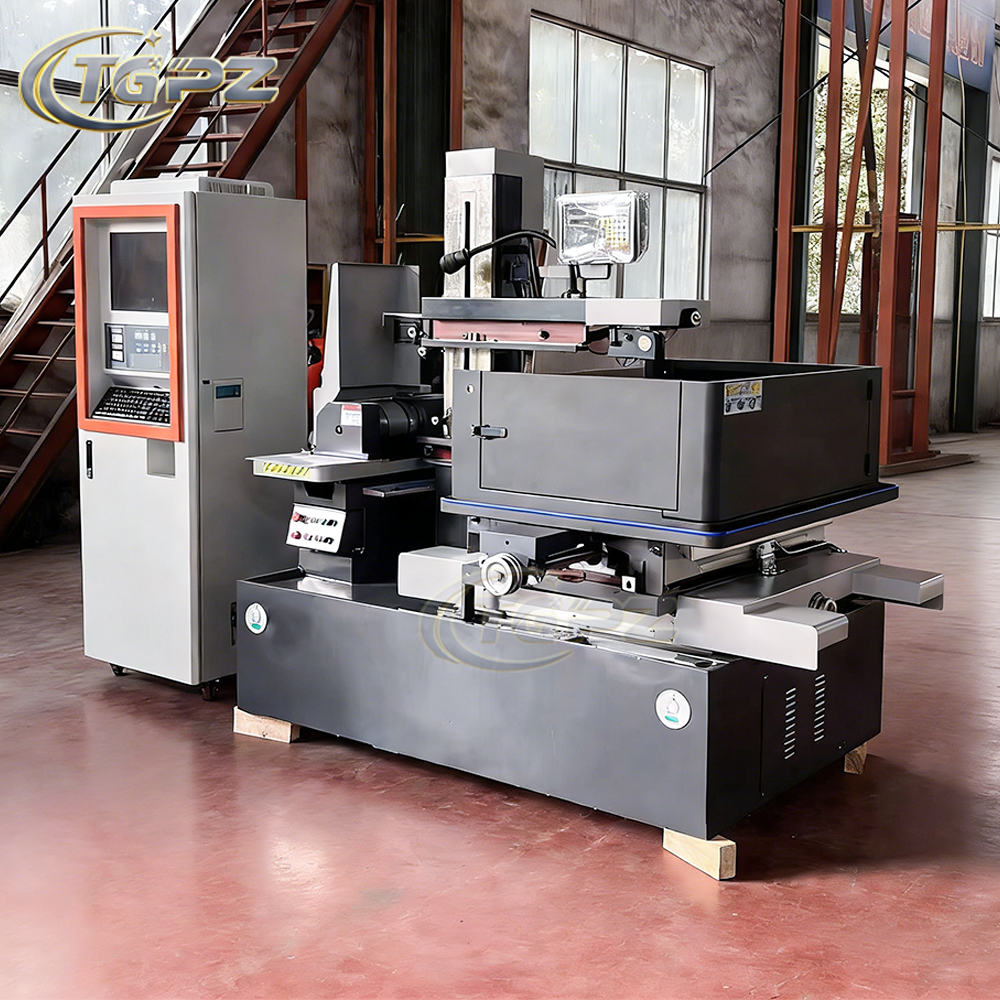

A new generation of the CNC high-speed molybdenum wire cut machine, featured with beautiful shape, novel structure, superior performance, big load bearing, steady movement, And it's even more convenient, safe,

and environmentally friendly to use.This machine is very popular because of its fast cutting speed, low loss of molybdenum wire and low cost.Machines are with Stepper motors or AC servo motors, Affordable

prices. They can support you to realize the maxium production value.They are suit to cut the component of high precision, fairly good rigidity, high toughness, gear cutter hob, precision mould , taper and upper

and lower abnormity component and etc.

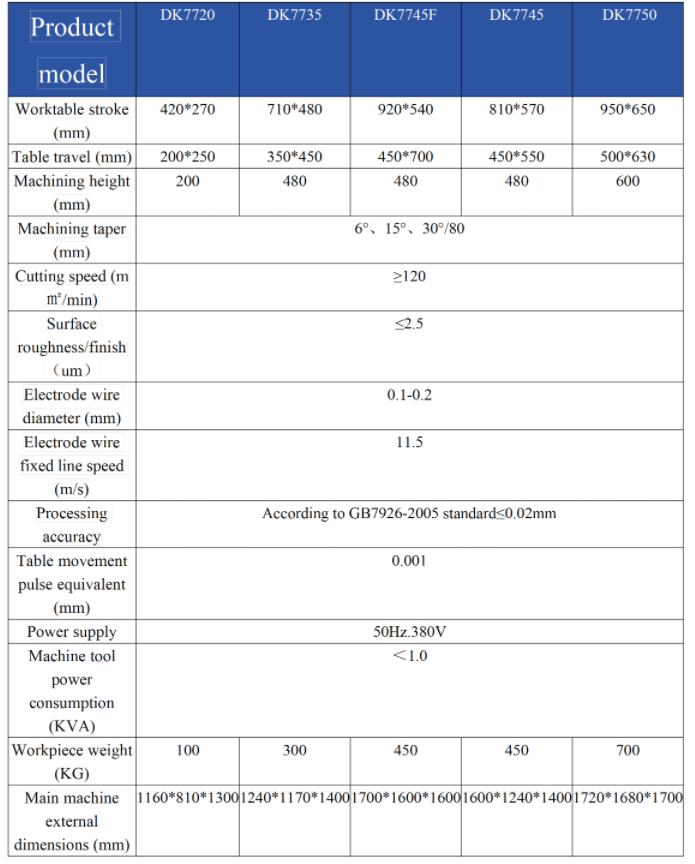

Product Main Technical Parameters
