CNC EDM Wire Cutting Machine

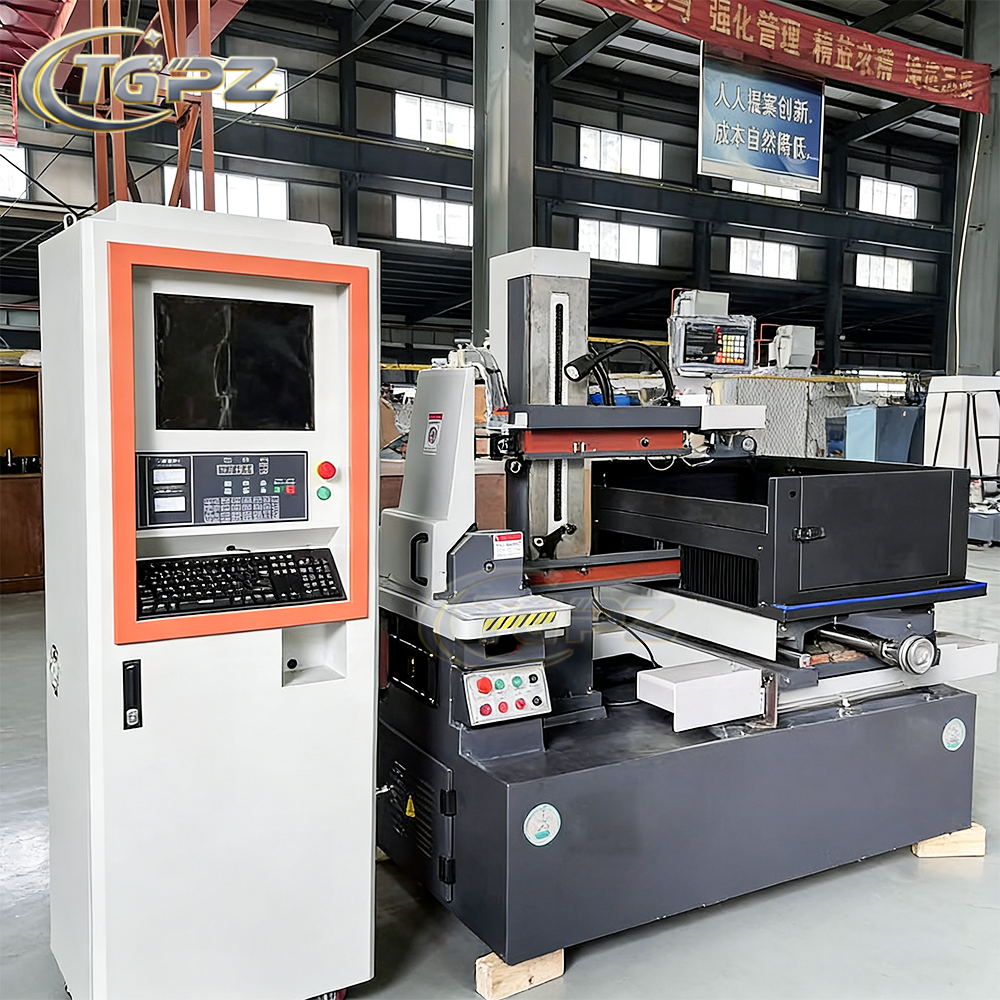

DK7745-A/B CNC EDM Machine
Wire cutting is suitable for mold manufacturing, precision hardware, electronics, automotive and aerospace industries, enabling high-precision, non-contact cutting of complex profiles, narrow slots and deep grooves on hard materials such as hardened steel and cemented carbide.
Get QuoteProduct Description
Technical Specifications:
CNC Die Sink EDM Single Head
Workpiece Size: 1000 X 600 mm
Worktable Heat Treated
Table Load: 1300 Kgs
Electrode: 200 Kgs
C5 (High Precision) Class Ball Screws with Double nut (X, Y, Z)
Linear Motion Guide (X Y Z)
Axis Travels (XYZ): 500400350 mm
Tank Capacity: 500 Liters
SController 60 AMP
Wear <0.15 %
Best Surface Finish: 0.18-micron Ra Max
Power Consumption: 4.5 KVA
Display: 15 Inch LCD
3 Axis Digital Readout 0.001mm
MPG with 0.001 mm Movement
Material removal Rate: 430 mm3/ min
Control Method & Axis: XYZ axis CNC Control
TURBO high cutting speed circuit included to increase the Graphite & Copper
Cutting efficiency & Finish.
Digital dual voltage (high/low voltage) currents being synchronously discharged to
ensure faster metal Removal Rate
Low electrode wear and uniform surface finish.
Electrical Power Supply: 380~480VAC, 3-Phase, 50Hz.
