CNC Vertical Lathe

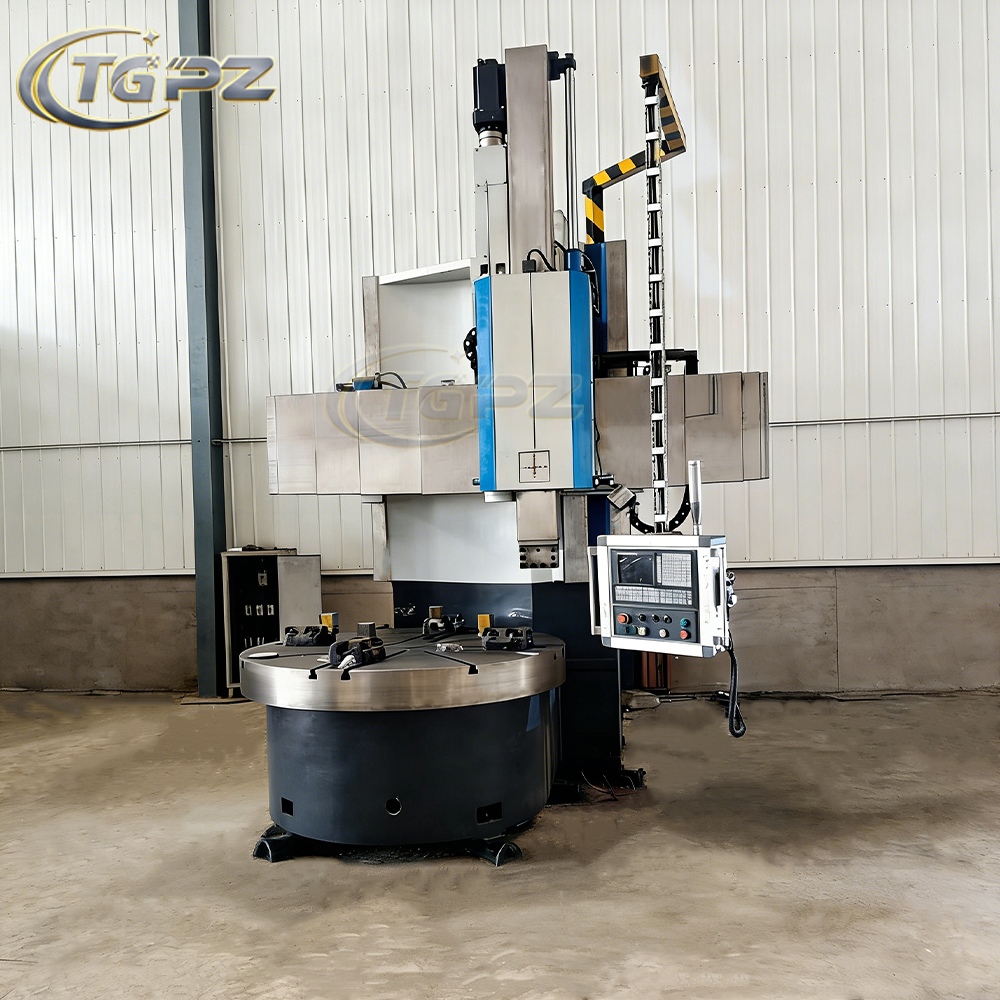

CK5120 CNC Vertical Lathe
Vertical Chinese metal lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of the hole. The vertical lathe machine cutting action is controlled by the PLC, and feeding axis is driven by the AC asynchronous servo motor, with touch screen display and hand-held pulsed. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation. Tool rest adopts the T-typeram manual 5-tool position tool table structure with good rigidity and convenient tool change. Worktable is manual 4-jaw single movement chuck.
Get QuoteProduct Description
Feature
Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning
processing.Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision.Machine tool
electric using domestic brand-name products, high reliability.Machine is made of high qualified epc process, high quality, the annealing aging treatment,appearance beautiful, durable, good agreeableness,
convenient operation and maintenance.

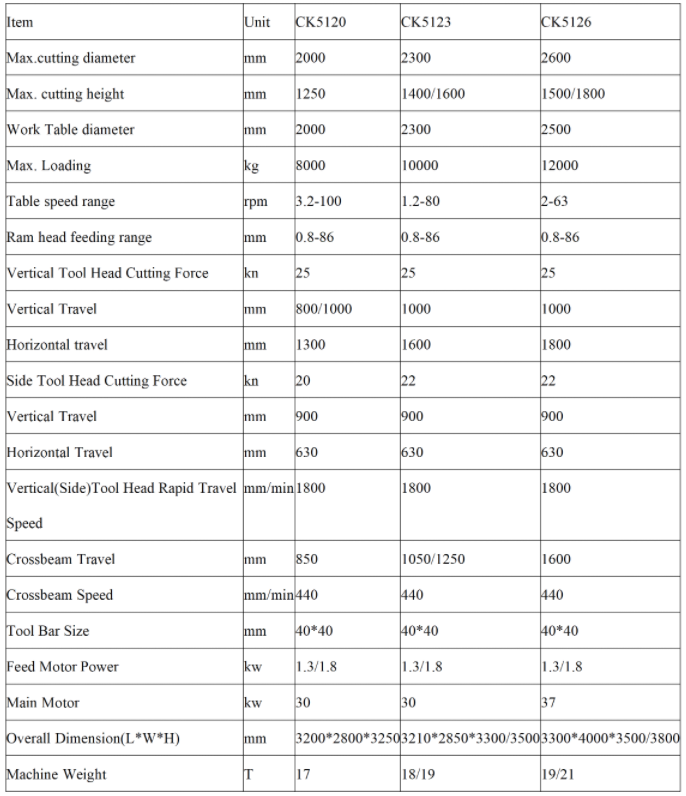

Product Main Technical Parameters
