CNC Vertical Lathe

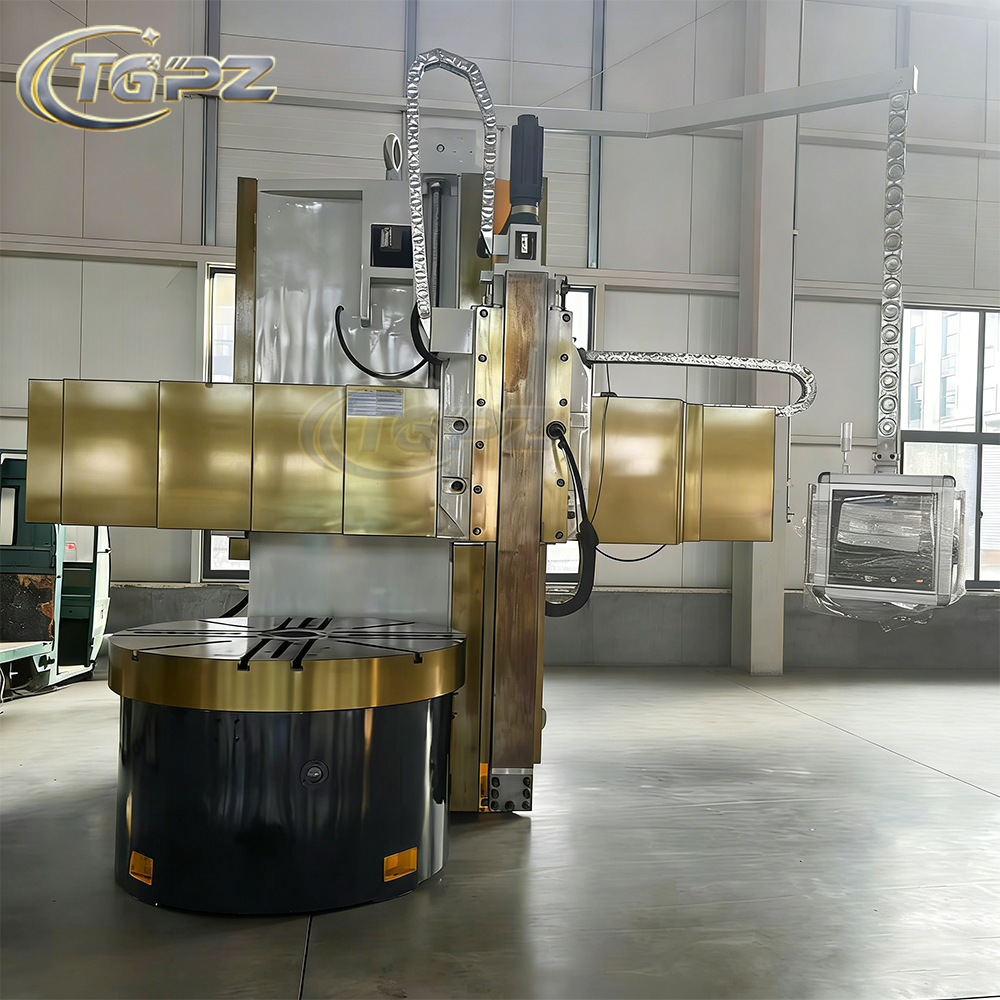

CK5116 CNC Vertical Lathe
This machine tool is a CNC single column vertical lathe. The CNC system adopts the Guangshu 980TDI system and has a vertical tool holder. It is equipped with high-speed steel cutting tools, hard alloy cutting tools, and various high-performance cutting tools, and can process black metal, non-ferrous metal, and some non-metallic material workpieces. On the machine tool, it can complete rough and fine turning processes such as inner and outer cylindrical surfaces, inner and outer conical surfaces, planes, and grooves.
Get QuoteProduct Description
Feature
★This series of horizontal lathes are widely used to process of various shaft and disc parts.used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning
various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc.
★The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, guarantee the bed head box cleanliness and the heat radiation characteristic, has effectively extended the
bearing and gear's service life.
★The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
★Before shipment , the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.

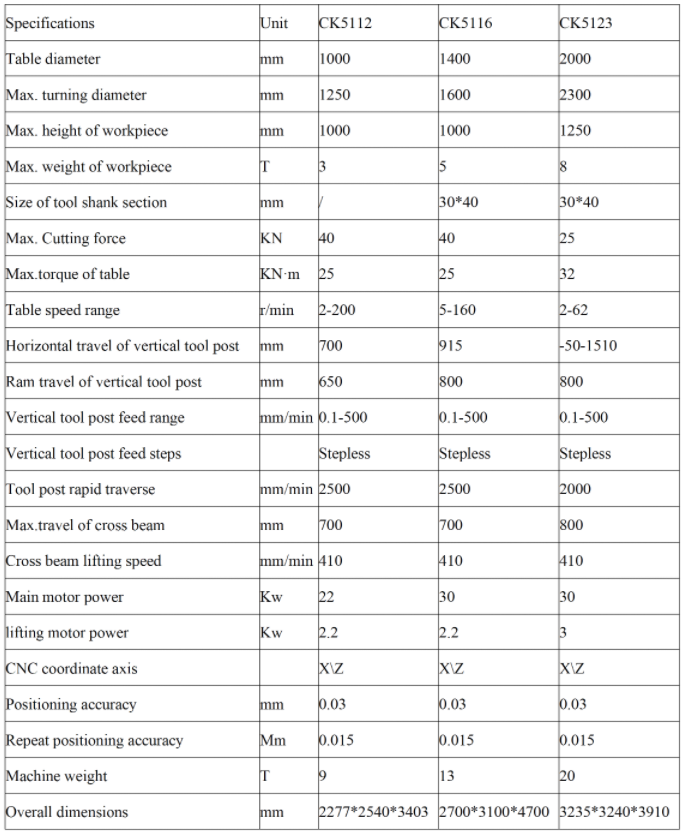

Product Main Technical Parameters
