Feature

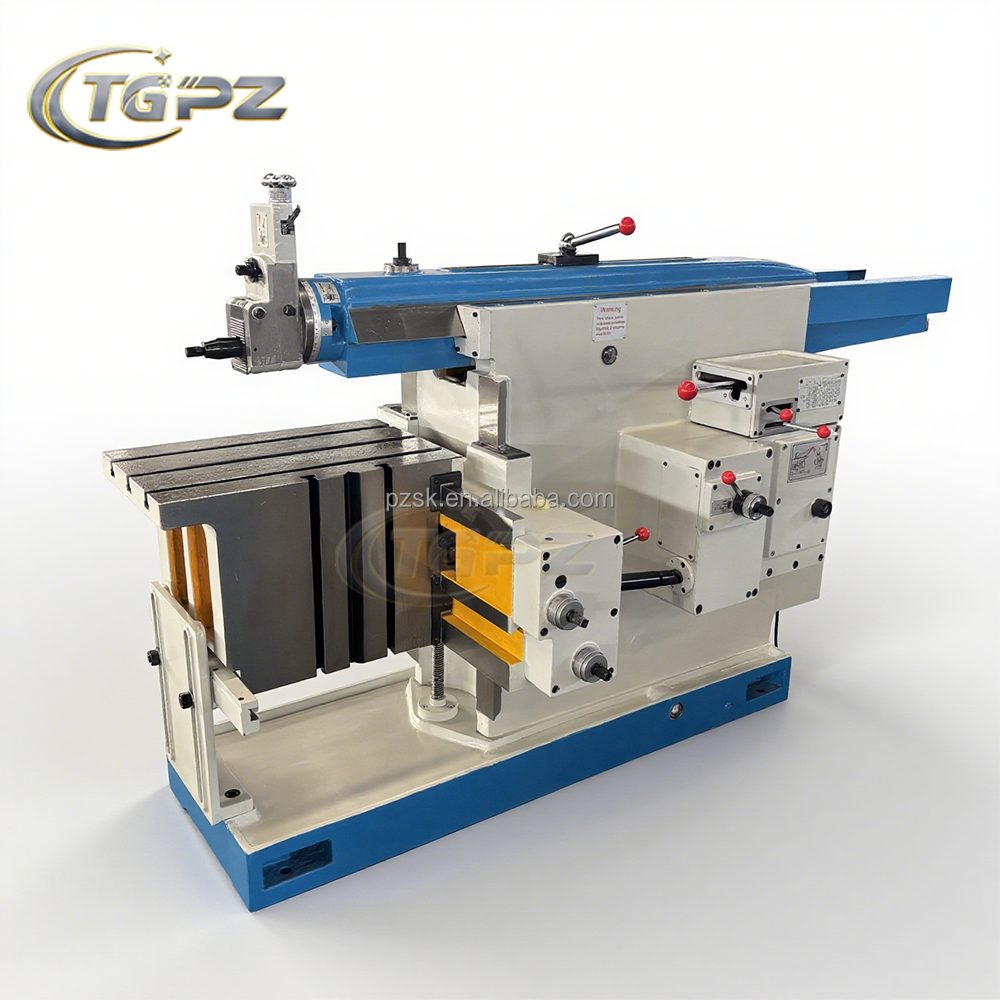

The shaper is mainly used for forming plane, planning medium on the work piece surface and groove in small batch production.

1. Shaper workbench can about rotational angle worktable with transverse and elevating the rapid moving mechanism; to planning

inclined plane, thereby expanding the scope of use.

Feed system using 2 planer cam mechanism, there are 10 levels of feed. Change the amount of knife, it is also very convenient.

3. Shaper in knife system overload safety device is installed, when due to careless handling or by external influence and cutting

overload when, take the knife itself slipping, nondestructive parts which guarantees the machine to normal operation.

4. The sliding pillow and bed rails and with speed gear pair and the main rail sliding surface, lubrication oil pump has played

for circulating lubrication.

5. The shaper is provided with a clutch and brake mechanism, so in the transform speed, start and stop machine, do not have to cut

off the power supply, the parking brake mechanism can made the ram when the clutch is disengaged the inertial stroke volume is not

more than 10 mm.

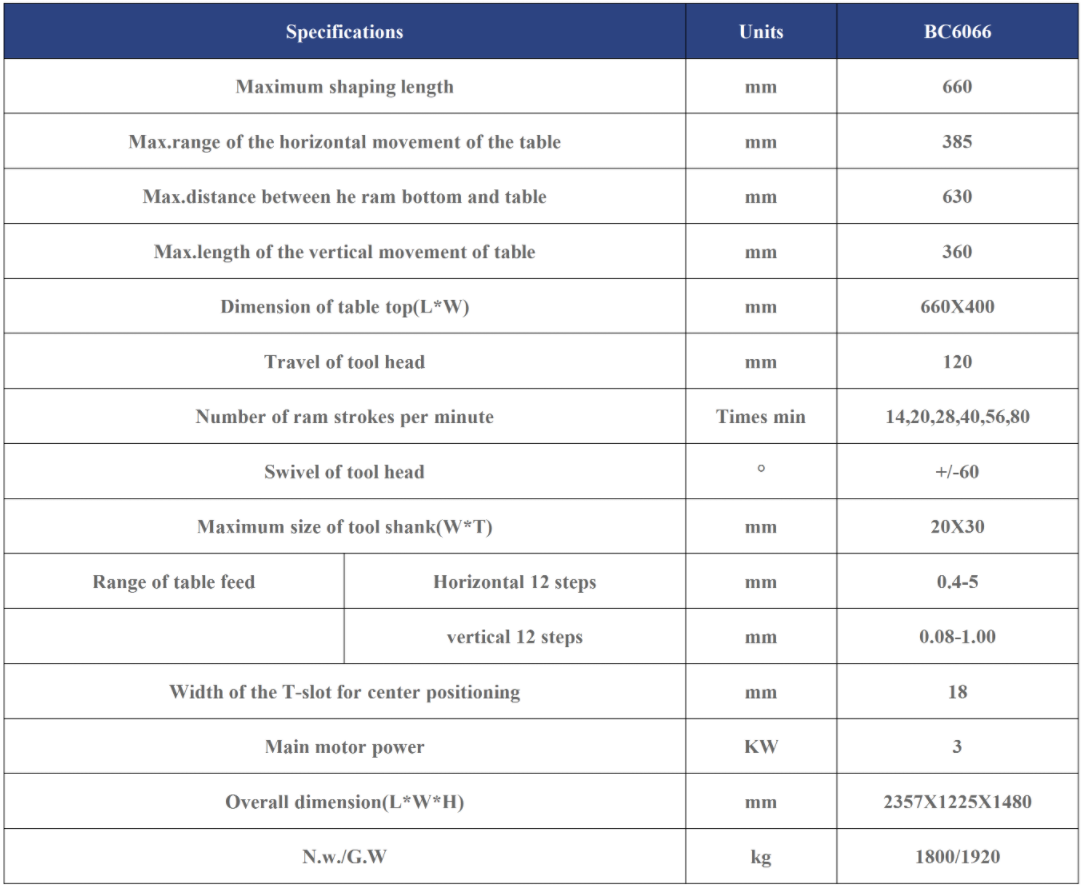

Product Main Technical Parameters
