Feature

The slider performs a horizontal straight line feed motion,

the tool holder can rotate multiple angles in the vertical plane, and can be manually fed.

The workbench carries the work piece for intermittent horizontal or vertical feed motion, used for machining flat surfaces, grooves,

and dovetail surfaces, and can also be used for machining formed surfaces.

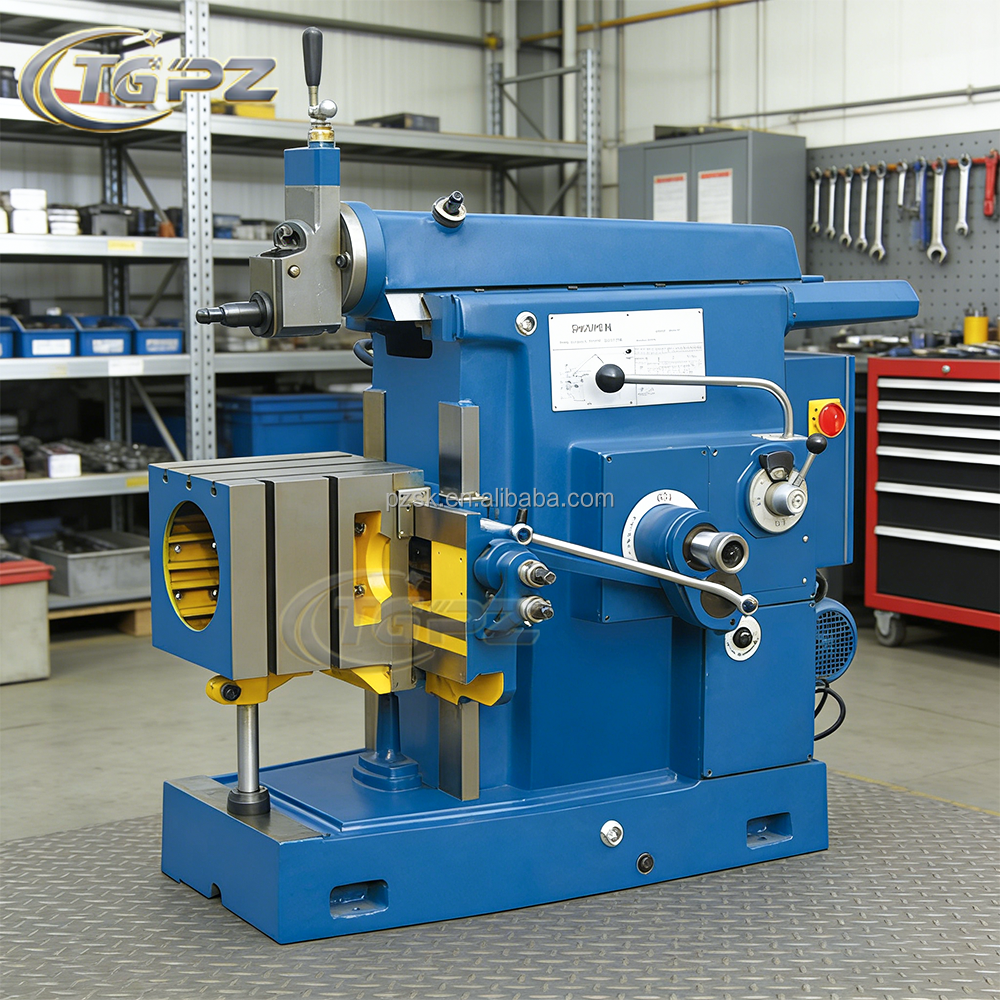

1.Manual metal shaper machine can turning angle of the table with horizontal and lift moving

mechanism; for the planning the inclined plane, thereby expanding the scope of use.

2.Planer feed system uses a cam mechanism to adjust the feed rate. It is very convenient to

change the feeding rate.

3.Manual metal shaper machine equipped with cutting system overload safety agencies.

Once occur careless operation, external influences or cutting overload,it will shift to self-skid, and non-destructive the machine.

4.Gap between the ram and the bed rail, the speed gear and the main sliding guide surface,

will be lubricated by the pump shot oil.

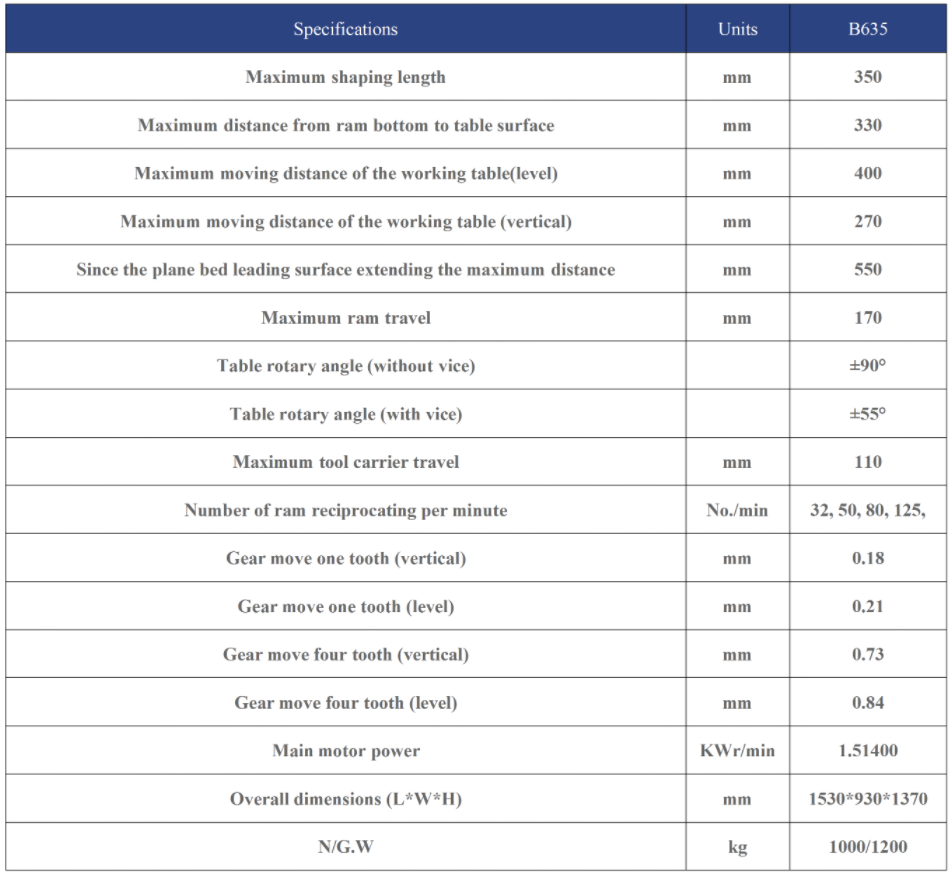

Product Main Technical Parameters
