Product Description
The main performance characteristics:

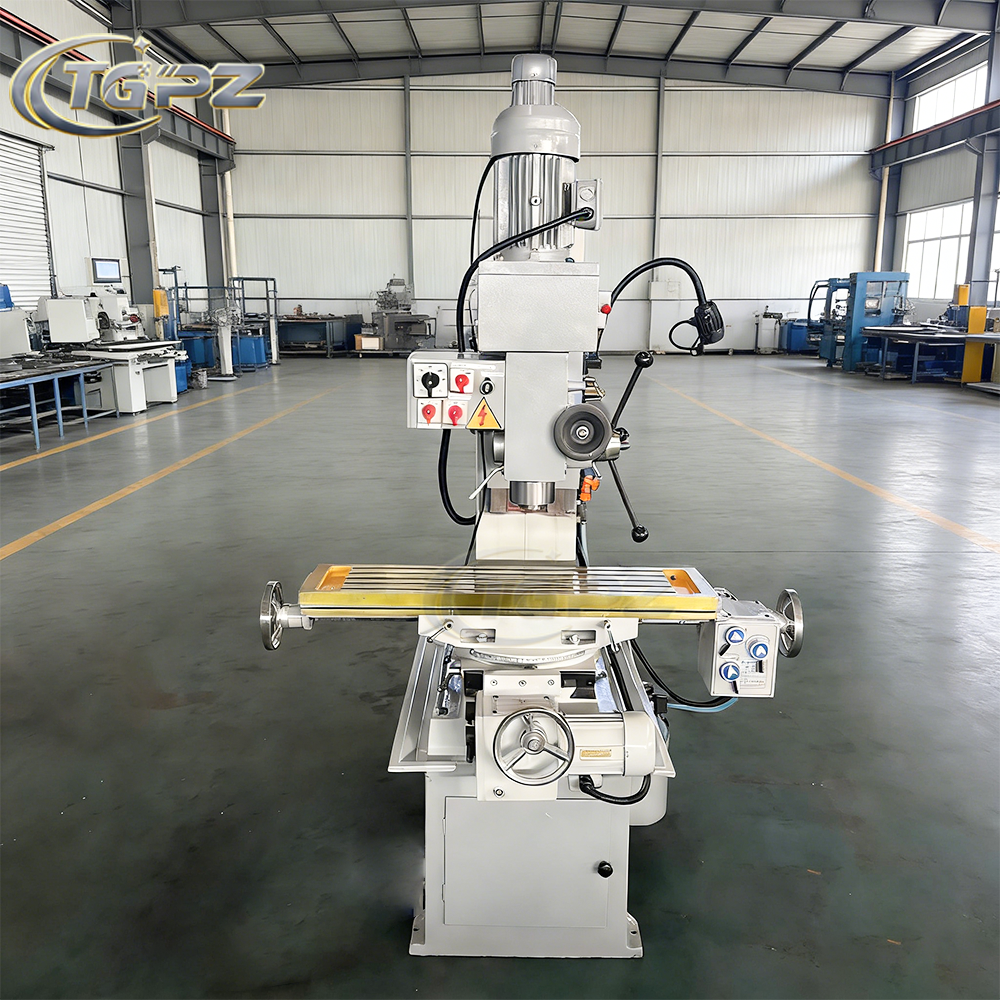

1 Universal use as milling machines and drill press 2. Easily shiftable gear drive ensures power transmission without losses 3. With v-belt spindle drive 4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for thespindle quill 5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines 6. Milling table swivels horizontally, including scale 7. Dovetail guides on all 3 axes 8. Head, table height can be adjusted through gear rack 9. Forward/reverse setting through motor switch

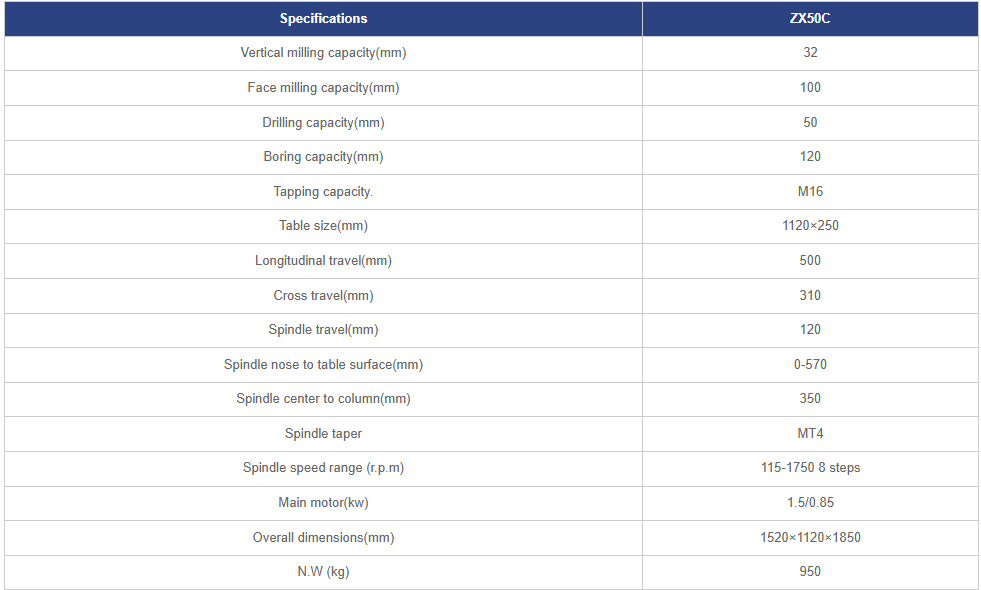

Product Main Technical Parameters
