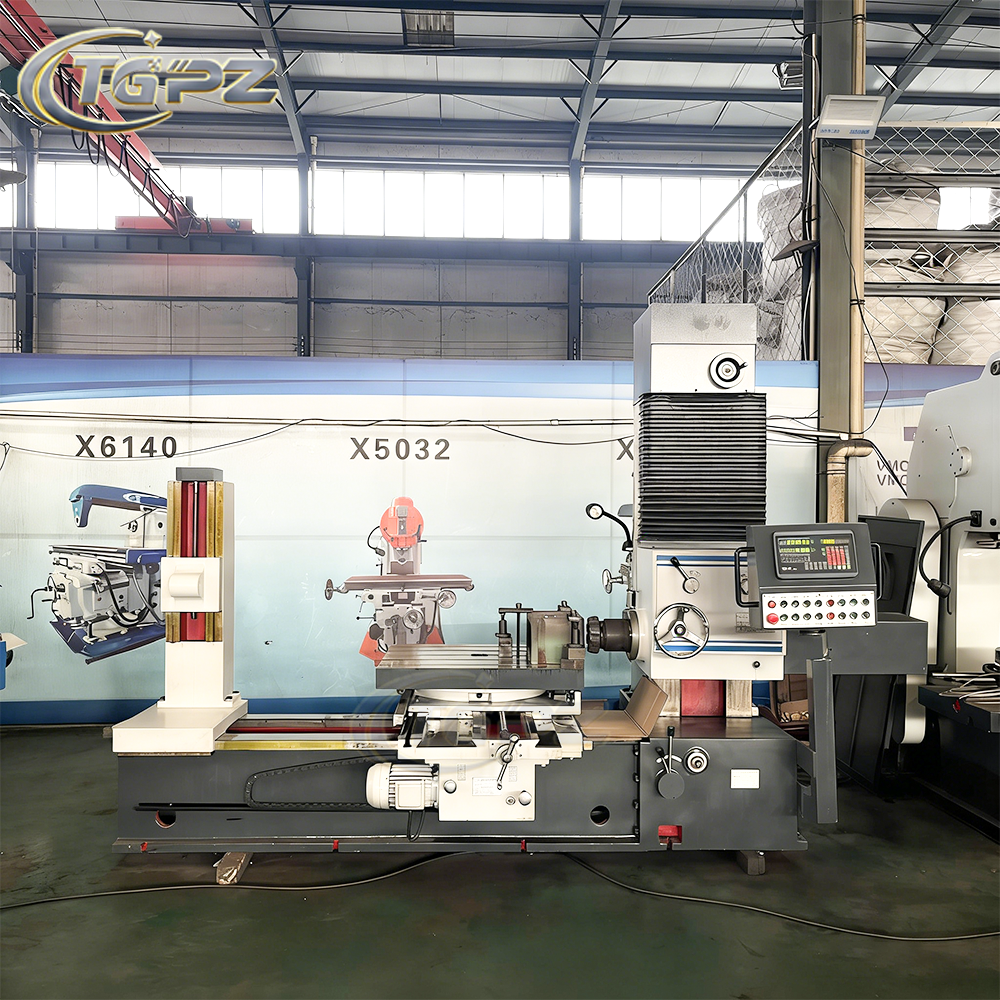

TX68 Boring and Milling Machine

Product Main Technical Parameters

Boring and Milling Machine Main Features：

1.The appearance of beautiful and generous overall layout coordination

2.Fuselage, vertical column, sliding seat are all rectangular guide, good stability

3.Guide rail to take automatic quenching, high wear resistance

4.Gigital synchronous display, intuitive and accurate, can improve the efficiency of low cost

Boring and Milling Machine Application:

1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.

2. Drilling, boring and hinge hole can be carried out on the machine tool.

Boring and Milling Machine Optional Configuration

Universal boring head

Face milling cutter

Tailstock

Boring bar

3 Axis DRO

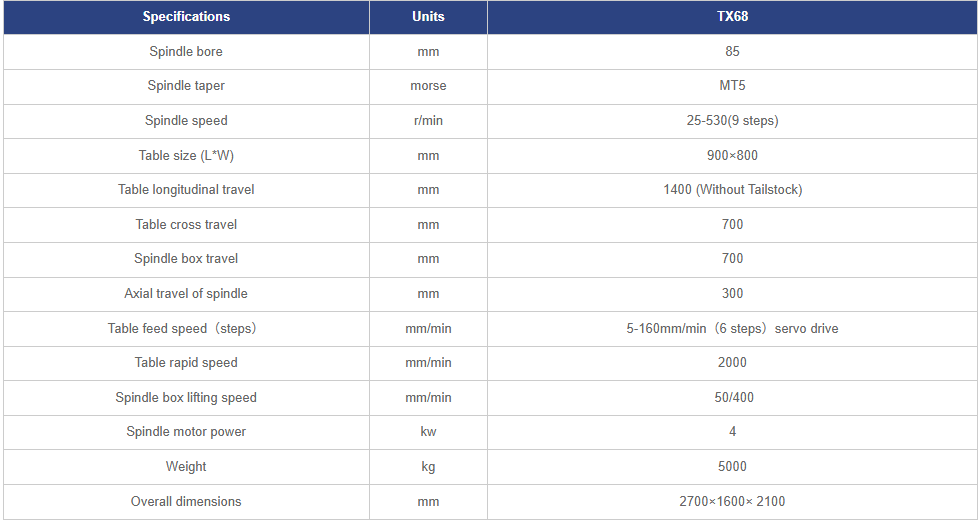

**Boring and Milling Machine Main Technical Specification: **
