Flat Bed CNC Lathe

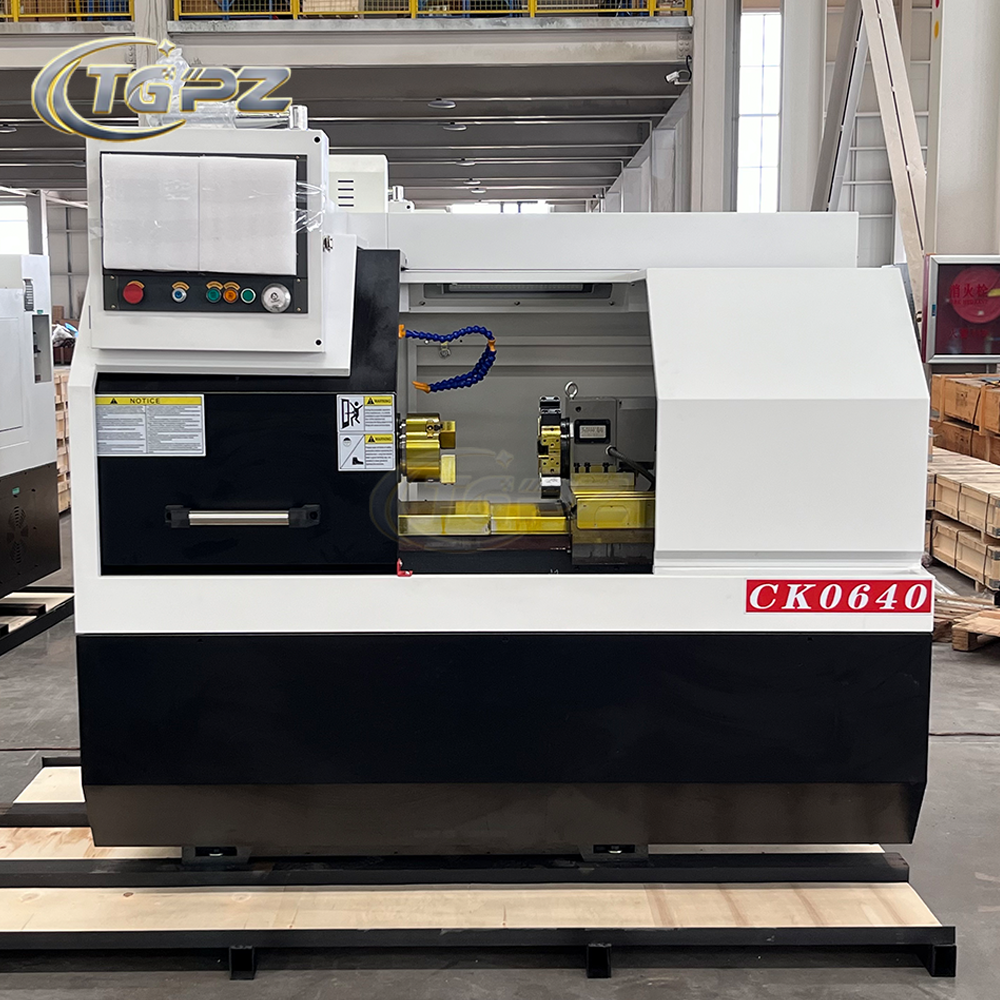

High Precision Light Duty Horizontal Small Flat Bed CNC Lathe CK0640
This machine is widely used in processing and manufacture the electric appliance ,instrumentation industry ,automobile ,motorcycle ,fastener bearings ,photographic and film machinery ,hardware tools ,watches ,glasses ,stationery ,motors ,valves and gas pipe and other high precise and complex components .It is the ideal high efficient equipment in the hardware machining industry .
Get QuoteProduct Description
Features
1.CK0640 can be permanently memory coordinates after power offer, you do not need worry if peoplemoved the position; it can continuely processing half of the workpiece.
Machine often caused alarms because of these widgets, CK0640 can set soft limit so that can savemachine maintenance time and cost.
High precision, CK0640 use absolute servo encoder is 17 bits.
lt is suitbale for mass production for small workpiece, high efficiency, high precision.
Application
CNC lathes are widely used in manufacturing industries requiring high-precision rotating parts, primarily in the following areas:
Aerospace: Processing high-precision, high-strength, complex alloy parts such as engine blades, rocket nozzles, and landing gear components.
Automotive: Manufacturing key components such as engine shafts, pistons, brake discs, and steering gear parts.
Mold Manufacturing: Processing cores and cavities for injection and die-casting molds.
Medical Devices: Manufacturing parts requiring high biocompatibility and precision, such as artificial joints, surgical instruments, and dental implants.
Electronics: Processing cavities, connectors, and precision shafts for communications equipment.
General Machinery and Military: Manufacturing standard and custom parts such as drive shafts, lead screws, nuts, valves, and sleeves.
Product Main Technical Parameters
CNC Lathe Machine Standard configuration:
Electric 4 position
3-jaw manual chuck
Manual tailstock

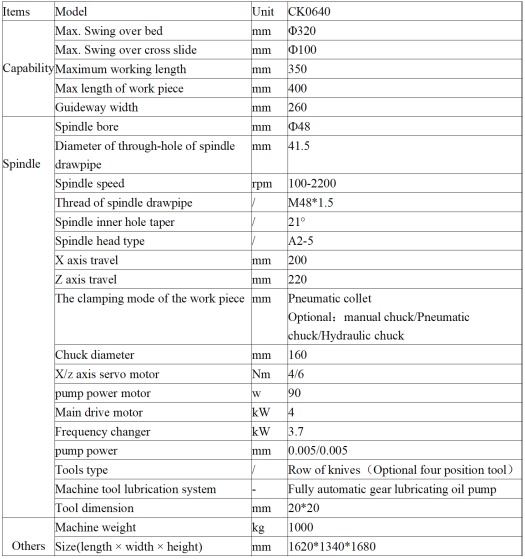

CNC Lathe Machine Specification:
