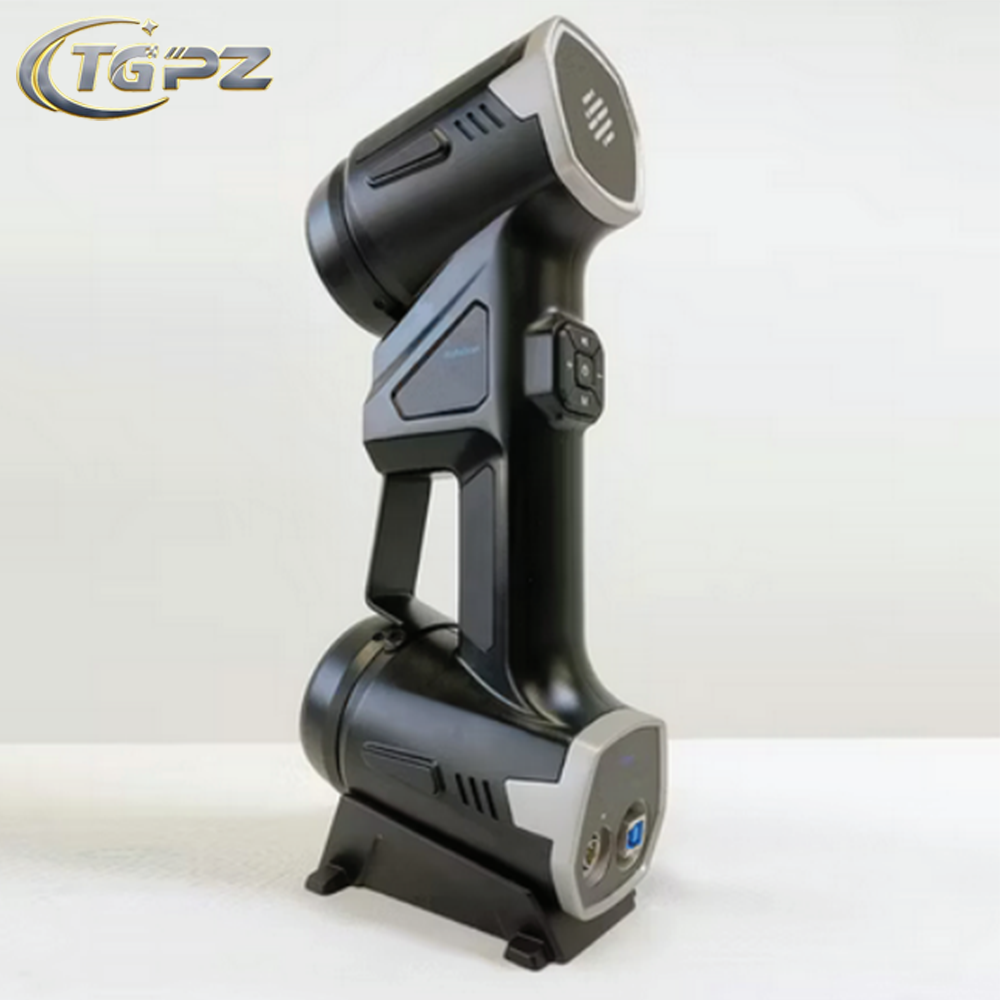

DS-14D 3D Scanner
Blue Light 3D Scanner is a high-precision, non-contact optical 3D measuring device. It quickly captures the complete 3D digital model of objects by projecting blue structured light, and is widely used in industrial inspection, reverse engineering and quality control.
Get QuoteProduct Description
Technical Specifications:
1.Light Source: Blue Laser
Number of Lasers: 14 Laser Lines
Accuracy/Scan Resolution: 0.04mm
Scan Volume : 30 mm cube to 2 m object
Working Distance: 400 mm
Volumetric Accuracy : 0.020 mm + 0.100 mm/m
Scan Depth: 250 mm
Measurement Rate: 8,00,000 measurements / sec
with Measurement resolution 0.030 mm
Field of View: 400mm x 400mm
Mesh resolution: 0.200 mm
Laser Class eye safe
Connection type: USB 3.0
Weight: 1 Kg for better handling
Power Input/consumption: 100 W
Working Temperature : 0° - 40°C
Working Humidity: Up to 90
Capability: The scanner will be able to scan large parts ranging 0.05-4 meters
and all kind of engineering components.
Portability: Handheld Device with Transport Casings
Software: The software compatible with Solid Edge/solid works,
CATIA etc. and able to post process the scanned data as per the requirements
such as setting up user de ned origin.
Features like best t for multiple scan model, alignments with base, mainly for
Reverse Engineering.
Reverse Engg software provid free of Cost with lifetime licence.
- Software Hardware & OS Support: One time license Software provided
along with scanner.
Services free for updates and upgrades compatible with Windows OS.
Capable of future up gradation
(software)
- User Friendliness: The scanner a simple user interface and
ease of use. Intuitive software and hardware to be designed to reduce the
learning curve and improve productivity.
- Power & Data Cable length: 10 meter
