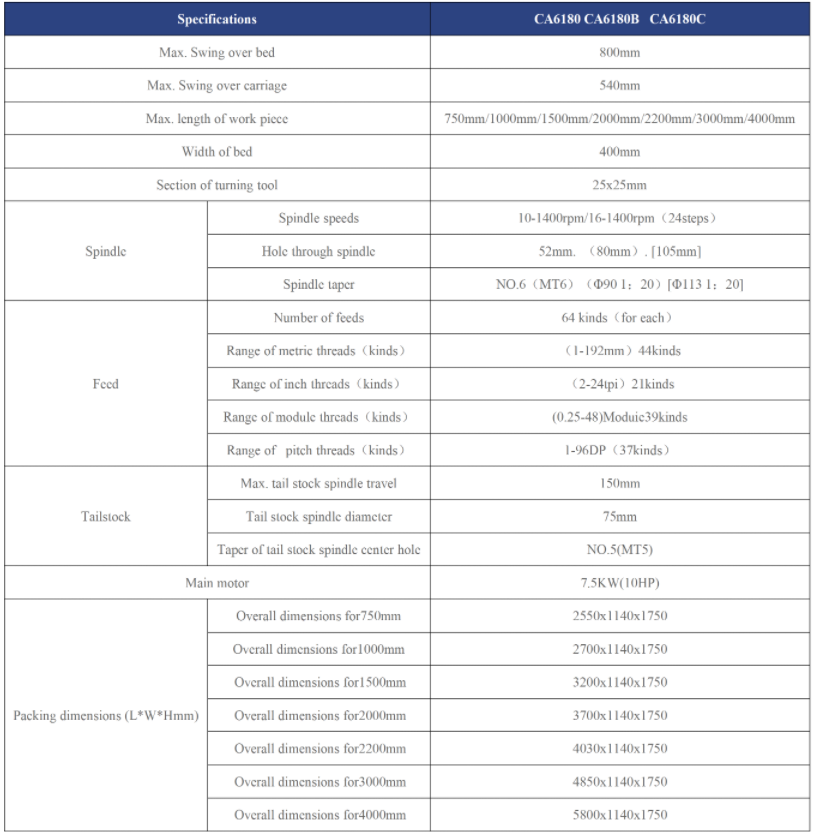

Product Main Technical Parameters


Features:

1.Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

2.Threading Inch,Metric,Module and D.P.;

3.Perform drilling, boring and groove broaching;

4.Machine all kinds of flat stocks and those in irregular shapes;

5.Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

6.Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;

7.There are hand brake and foot brake for users to choose;

8.These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).

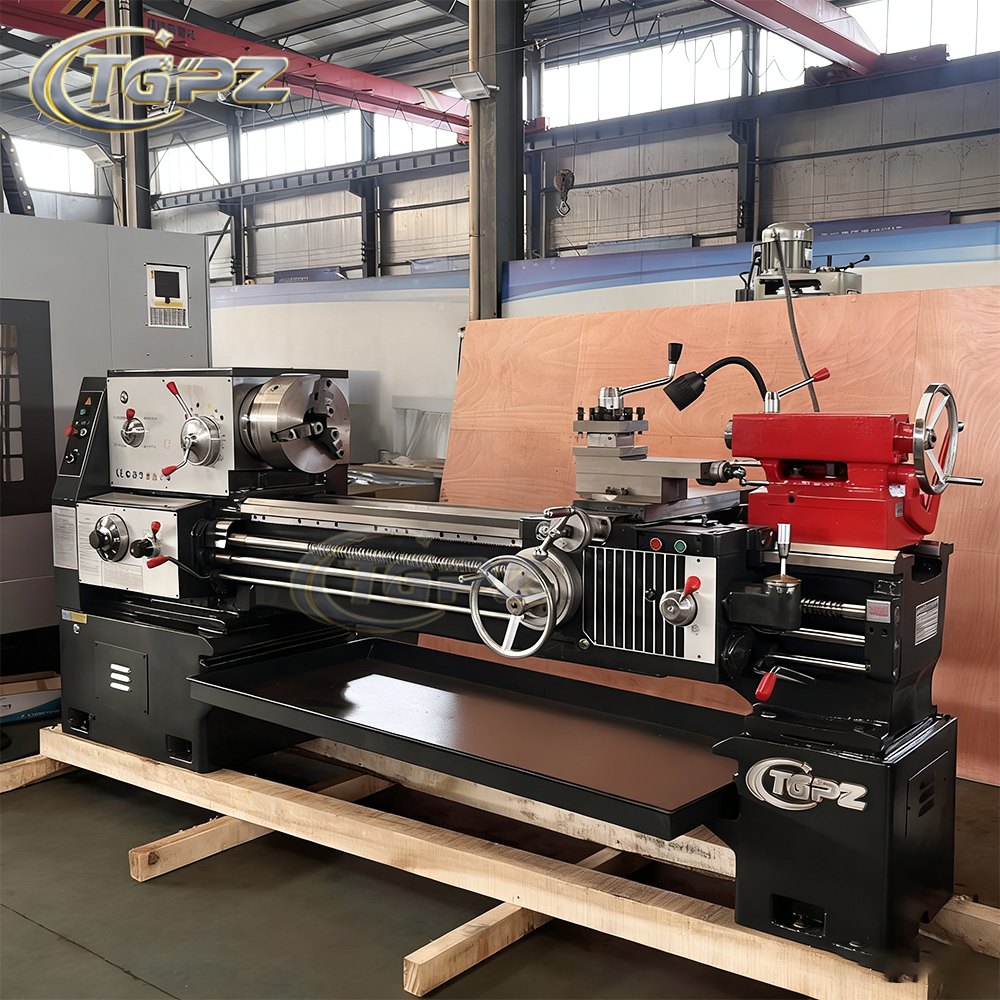

Horizontal Lathe Machine main performance characteristics：

1 Machine tool bed box, headstock and tailstock, pallet etc. the binding surface between the manual scraping machine, after rigorous testing, the precision and stability of the effective guarantee machine.

2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching depth 4mm, effectively improve the wear resistance and stability of machine tool.

3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure the cleanliness of the bed box and heat dissipation characteristics,

effectively extend the bearing and gear life.

4 Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively improve the hardness, reduce machine noise.

5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and the accuracy retention.

6 Machine tool with four position high strength tool, shank size: 25x25mm.

Horizontal Lathe Machine Application：

1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread,

and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.

2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.

3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good.。

4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.

5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability.
